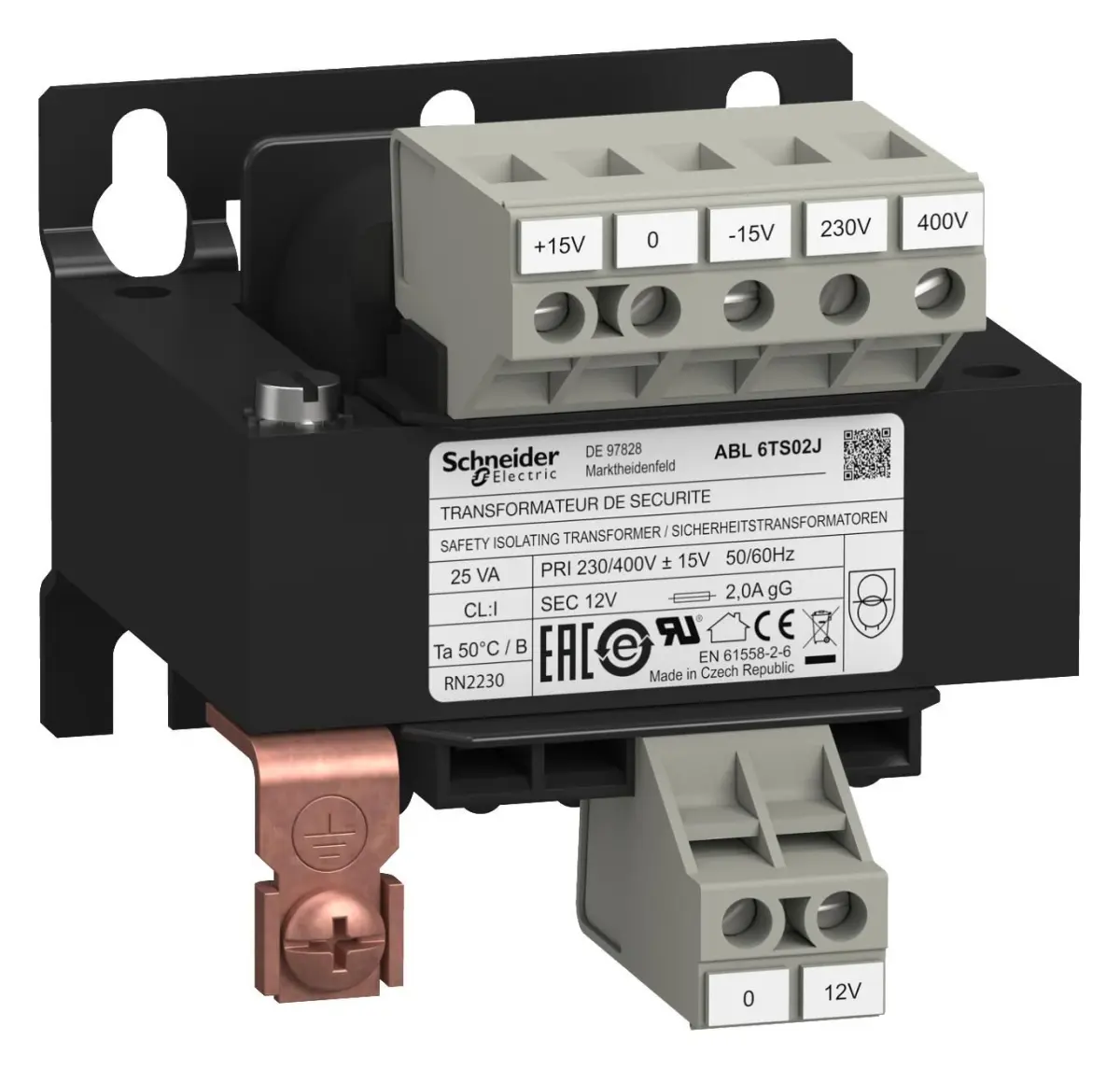

Schneider Electric 25VA 12V Panel Mount Transformer

The Phaseo ABL6TS series from Schneider Electric are safety and isolation single phase transformers, engineered to provide enhanced electrical isolation between the line supply and your application. Designed for reliable operation in industrial, power management, and safety applications, these transformers deliver consistent performance in demanding environments.

With a power rating of 25VA and a 12V AC output, this transformer is suitable for a wide range of low-voltage control and safety circuits. It operates with an input voltage of 230V or 400V AC at 50 or 60Hz, offering flexibility for different installations. The compact design allows for easy panel mounting with screw terminals, ensuring a secure and straightforward installation.

Key Features & Benefits

• Enhanced electrical isolation for improved safety
• Operating temperature up to +60°C for demanding environments
• IP20 degree of protection for indoor use
• Available in various output voltages (12V, 24V, 115V, 230V) across the series
• Robust construction for long-term reliability

Technical Specifications

• Input Voltage: 230V / 400V AC
• Output Voltage: 12V AC
• Power Rating: 25VA
• Frequency: 50 / 60Hz
• Mounting: Panel Mount
• Terminals: Screw
• Series: Phaseo Optimum ABL6TS

This transformer is an ideal choice for applications that require reliable isolation and stable voltage conversion. Trust Schneider Electric's Phaseo series for quality and performance in your critical systems.
