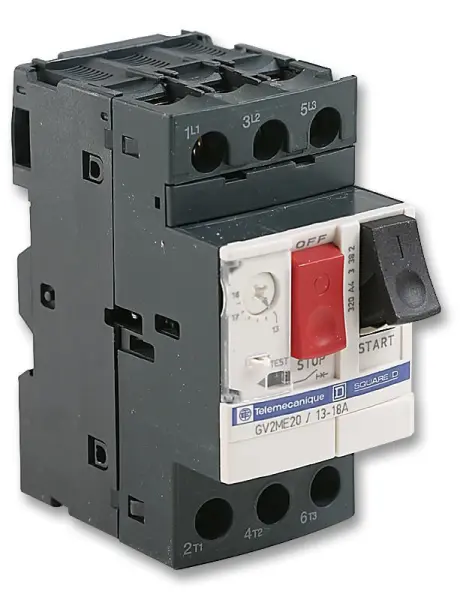

Schneider Electric GV2ME20 3 Pole 13-18A Thermal Magnetic Circuit Breaker, 690V

The Schneider Electric GV2ME20 is a robust three-pole thermal magnetic circuit breaker from the renowned TeSys product range. Designed for reliable circuit protection in demanding industrial environments, it offers precise thermal and magnetic tripping mechanisms to safeguard equipment from overloads and short circuits. Its construction ensures consistent performance and long-term durability, making it a trusted component for electrical safety.

This circuit breaker features convenient screw clamp terminals for secure and stable wiring connections. It is DIN rail mountable, supporting both vertical and horizontal mounting positions for flexible integration into control panels, switchboards, and machinery. With a high breaking capacity of 3 kA at 690 V AC, it provides effective interruption of fault currents, conforming to rigorous international safety standards.

Key Features & Specifications

• Thermal Protection: Adjustable overload protection range from 13 A to 18 A, allowing for fine-tuning to match specific load requirements.
• Magnetic Protection: Short-circuit protection with a magnetic tripping current of 223 A for rapid response to fault conditions.
• Rated Voltage: Suitable for systems with a rated operational voltage of up to 690 V AC (50/60 Hz).
• Mounting & Enclosure: Easy DIN rail mounting with a degree of protection rated at IP20 (against solid objects) and IK04 (against mechanical impact).
• Environmental Rating: Operates reliably across a wide ambient temperature range from -20°C to 60°C.
• Control: Features user-friendly pushbutton control for manual operation.
• Approvals: Certified to EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1, UL 508, VDE 0113, VDE 0660, CSA C22.2, and other national standards, ensuring compliance for global applications.

Ideal for industrial control, machinery safety, and panel building, the GV2ME20 is
