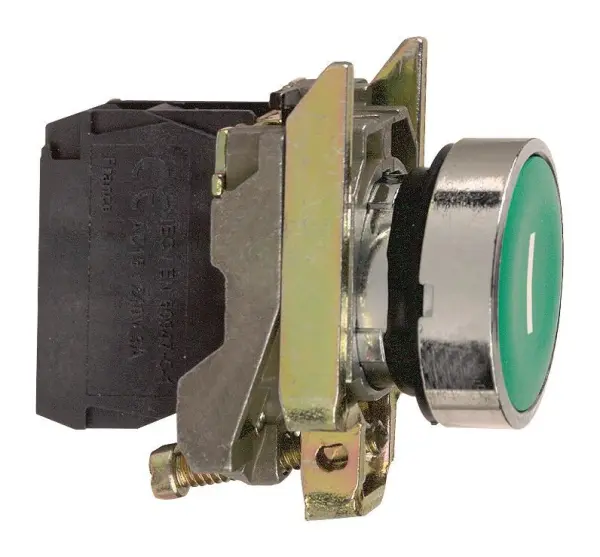

SCHNEIDER ELECTRIC Industrial Push Button Switch, Momentary, SPST-NO, Green

The SCHNEIDER ELECTRIC XB4BA31 is a robust, momentary-action industrial push button switch designed for demanding commercial and industrial applications. Featuring a single-pole, single-throw, normally open (SPST-NO) contact configuration, this switch is engineered for high reliability and long service life.

Constructed with a durable chromium-plated metal bezel and a Zamak alloy fixing collar, the switch offers excellent resistance to corrosion and mechanical stress. The actuator is a spring-return, green flush button, providing a clean, unmarked appearance suitable for modern control panels. Electrical connections are made via secure screw clamp terminals, ensuring a stable and vibration-resistant contact.

The heart of the switch is its slow-break silver-nickel (Ag/Ni) alloy contacts, which are designed to minimise arcing and ensure consistent performance over millions of operations. With a mechanical durability rating of 5,000,000 cycles, this component is built for endurance in high-frequency use environments.

Key Specifications & Certifications

• Electrical Rating: 6A at 120V AC / 550mA at 125V DC.
• Protection Ratings: It boasts an IP66 rating (conforming to IEC 60529) for protection against dust and powerful water jets, making it suitable for washdown areas or outdoor use. It also meets IK impact protection standards (IEC 50102) and features a TH protective treatment for harsh conditions.
• Safety Compliance: The switch conforms to Class I protection against electric shock as per IEC 60536, ensuring a high standard of electrical safety.
• Mounting: Designed for panel mounting, it provides a secure and professional installation.

Part of the renowned Harmony XB4 series, this non-illuminated green push button is a versatile and dependable choice for machinery control, automation systems, and any application requiring a high-quality manual control interface.
