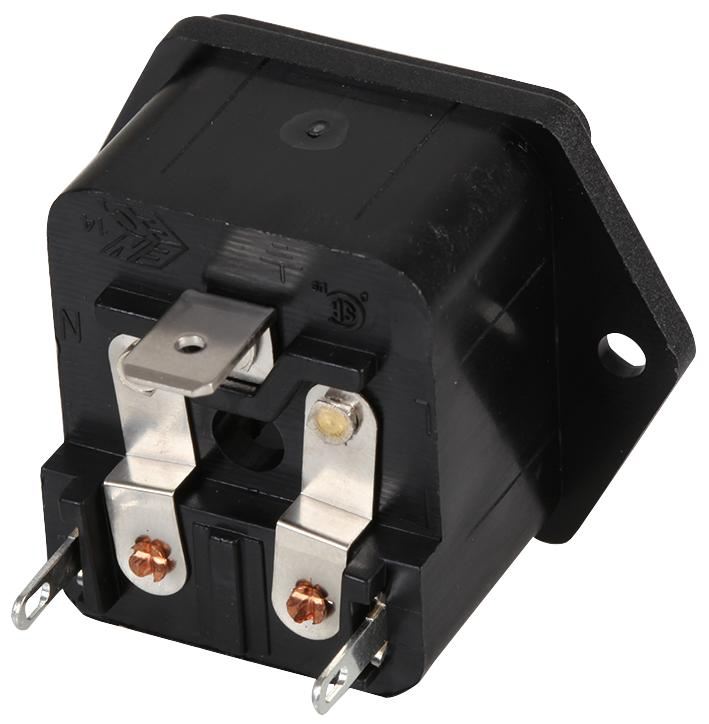

SCHURTER C14 Inlet, 1062 Series, 10A 250V, Fused, 6.3mm Tab
SCHURTER 1062 Series C14 inlet with fused protection (10A/250V), quick-connect terminals & front mounting. IP20 rated.
The SCHURTER C14 Inlet, part of the 1062 Series, is a high-quality fused appliance inlet designed for secure screw-on panel mounting from the front. It features a durable PA6 black housing with UL 94V-0 flammability rating, ensuring reliable performance in various environments.
This 2-pole fused inlet requires two 5x20mm fuses for enhanced protection. The solder tag contacts provide a secure connection, while the quick-connect terminals simplify wiring. With a current rating of 10A and voltage rating of 250VAC, it’s suitable for general-purpose power entry applications.
Key features include:
- Front-mounting design for easy installation
- IP20 rating for basic protection against dust and accidental contact
- Wide operating temperature range (-25°C to +70°C)
- Standard IEC C14 connector for compatibility with power cords
This product has seen increased market demand, which may affect lead times. It is exempt from discounts and subject to fluctuating availability.
- **General-purpose power entry applications**
- **Electrical enclosures and panels**
- **Industrial equipment**
- **Housing Material:** PA6, Black, UL 94V-0
- **Protection Class:** Class I (IEC 61140)
- **Operating Temperature Range:** -25°C to +70°C
- **Cut-Out Dimensions:** 33.2x33.2mm
- **Fixing Centres:** 40mm
- **Connector Type:** IEC C14
- **Power Entry Module Applications:** General Purpose
- **Current Rating:** 10A
- **Voltage Rating:** 250VAC
- **Fuse Holder:** 1-Pole Fuse Holder
- **Fuse Size Held:** 5mm x 20mm
- **Connector Terminals:** Quick Connect
- **Connector Mounting:** Flange Mount
- **IP Rating:** IP20
- **Product Range:** 1062
