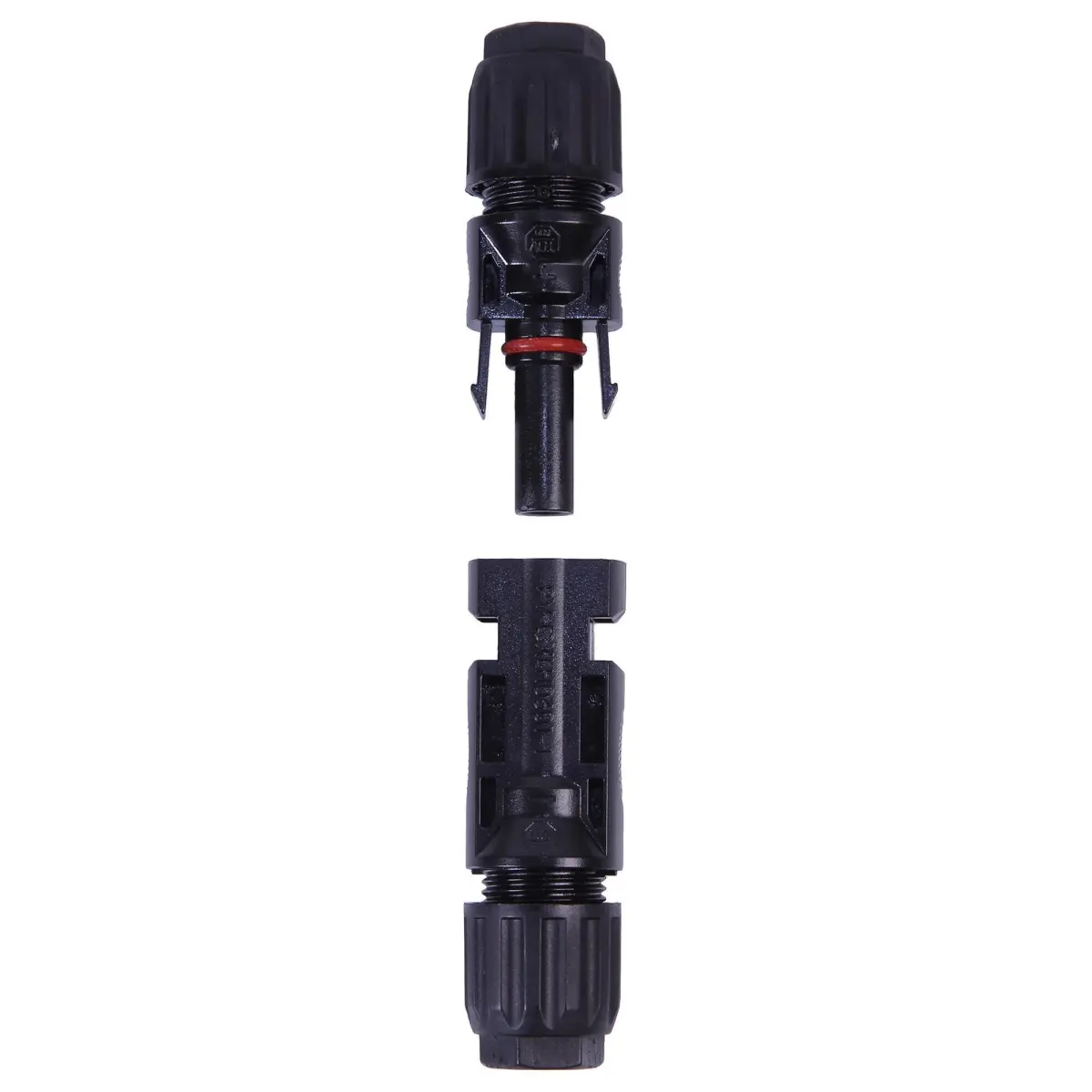

SCOLMORE Solar Photovoltaic Connector Male & Female, 1500V, 30A, IP68

The SCOLMORE Solar Photovoltaic Connector provides a reliable and secure connection for solar and photovoltaic applications. Designed as a female and male coupler set, it features a robust Polyphenylene Ether (PPE) housing that ensures excellent durability and performance in demanding environments. With a high current rating of 30A and a voltage rating of 1500V, this connector is built to handle significant electrical loads safely.

This connector boasts an IP68 rating, making it highly resistant to dust and water ingress, which is crucial for outdoor solar installations. It operates efficiently across a wide temperature range from -40°C to 85°C, and adheres to stringent safety standards including IEC 62852 and EN62852 + A1. The flammability class of UL94 V-0 and application class A further underscore its safety and reliability profile.

Key Specifications

• Connector Type: Female and Male Coupler
• Mounting: Cable Mount
• Cross Sectional Area (CSA): 4mm²
• Rated Impulse Voltage: 16kV (Actual Measured Value: 20kV)
• Rated Insulation Voltage: 8000V DC
• Housing Material: Polyphenylene Ether (PPE)

Compact dimensions of 33 mm in height, 22 mm in width, and 2 mm in depth, alongside a lightweight build of just 170 grams, make this solar connector easy to integrate into your existing photovoltaic system setup.
