SEEED STUDIO CANBed Arduino CAN-BUS Development Kit ATmega32U4

The SEEED STUDIO CANBed Arduino CAN-BUS Development Kit integrates the power of an ATmega32U4 chip alongside the MCP2515 CAN-BUS controller and MCP2551 CAN-BUS transceiver. This innovative design effectively combines a CAN-BUS shield and an Arduino development board into a single, compact unit, streamlining your projects and reducing the need for multiple components.

Featuring the ATmega32U4 with an Arduino Leonardo bootloader directly on the board, this kit offers seamless programming and flexibility. It provides selectable OBD-II and CAN standard pinouts at the sub-D connector, ensuring broad compatibility with various automotive and industrial networks. Furthermore, the board is fully compatible with the Arduino IDE, making it accessible for both beginners and experienced developers.

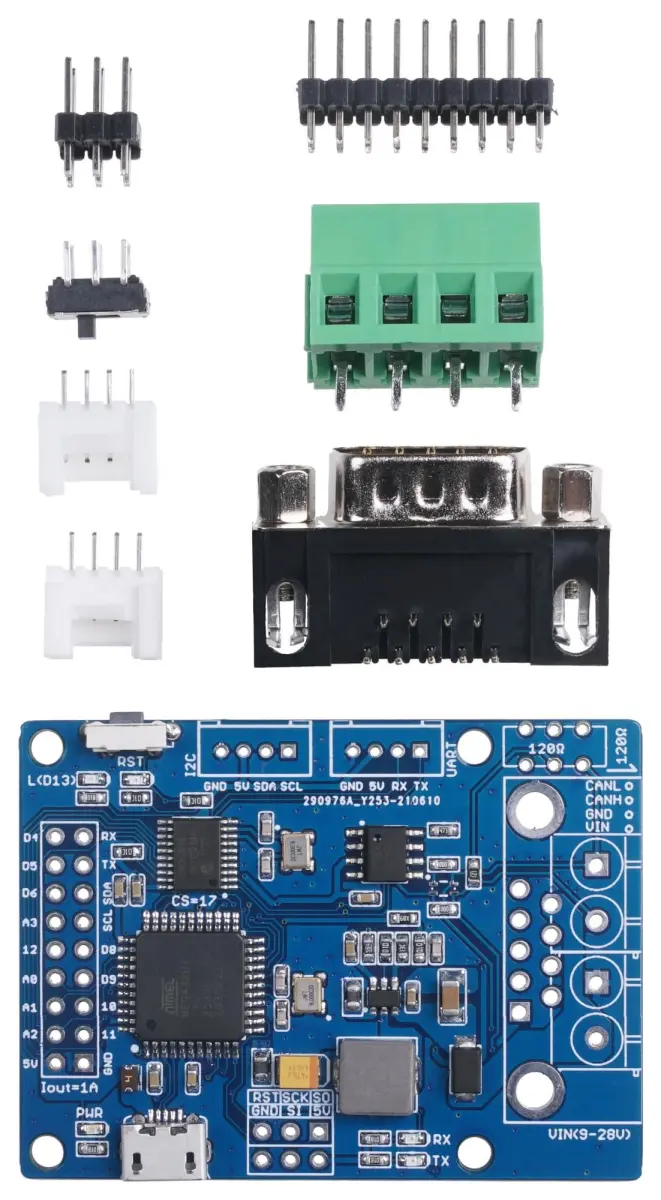

Kit Contents

• CANBed PCBA
• Sub-D connector
• 4PIN terminal
• 4PIN 2.0 connector x 2
• 9x2 2.54 header x 1
• 3x2 2.54 header x 1

With compact dimensions of 43 mm x 33 mm x 15 mm and a lightweight design of just 33 grams, this development kit is highly suitable for space-constrained applications. Whether you are building vehicle diagnostics tools or custom CAN-BUS networks, the CANBed provides a robust and reliable foundation.
