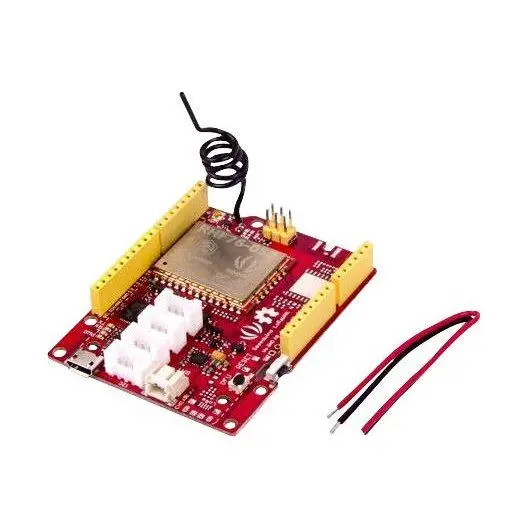

SEEED STUDIO Seeeduino RHF76-052AM LoRaWAN Development Board

The SEEED STUDIO Seeeduino RHF76-052AM is an Arduino-compatible development board that integrates LoRaWAN (Long Range Wide Area Network) protocol, enabling you to rapidly prototype and experience the advantages of long-range communication for IoT (Internet of Things) projects. Based on the versatile RHF76-052AM communication module, this board supports LoRaWAN Class A and Class C protocols and operates across a variety of communication frequencies, offering great flexibility for different regional requirements and network configurations.

To simplify sensor and actuator integration, the board features four on-board standard Grove connectors. This allows for convenient connection to hundreds of compatible Grove modules, enabling users to focus on developing their application logic without concerning themselves with complex wiring or compatibility issues between different electronic components.

A significant feature is the integrated lithium battery management chip, which permits USB charging. This makes the board ideal for remote, battery-powered applications. In ultra-low power consumption mode, a fully charged battery can sustain the board for several months, highlighting its efficiency for long-term deployments.

Powered by a powerful ATSAMD21G18 ARM Cortex-M0+ microcontroller running at 48MHz with 3.3V logic, the board balances processing capability with the ultra-low power consumption required for IoT edge devices. Its specifications include an impressive minimum current draw of 2mA (with a 3.7V LiPo battery) and just 80µA when the power LED is disabled, underscoring its design for energy-sensitive applications.

Whether you are building a smart agriculture sensor network, an asset tracking system, or an environmental monitoring solution, the Seeeduino RHF76-052AM provides a robust and user-friendly platform to bring your long-range IoT concepts to life quickly and effectively.
