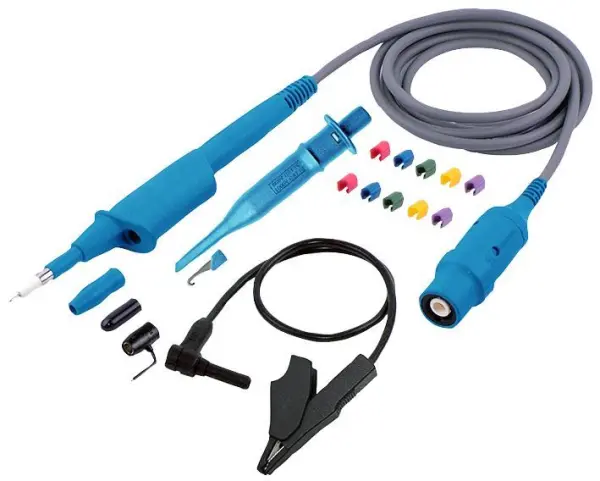

Stäubli 500MHz Oscilloscope Probe Kit, 100:1 Attenuation, CAT III/IV

The Stäubli 500MHz Oscilloscope Probe Kit is a professional-grade 100:1 safety test probe designed for high-frequency measurements in high-voltage environments. It is engineered with a low input capacitance and high input impedance, making it highly suitable for taking precise measurements on sensitive electronic circuits without introducing significant loading effects.

The probe features a highly flexible coaxial cable terminated with a BNC plug that houses an integrated compensation unit. This design ensures reliable signal integrity and ease of use. With an impressive bandwidth of 0 to 500MHz and a fast rise time of 0.9ns, this probe is capable of accurately capturing rapid signal transitions, essential for advanced electronics diagnostics and development work.

Key Features & Safety

• High Safety Rating: Certified for 1000V CAT III and 600V CAT IV applications, providing a high level of protection for the user when working with mains-connected equipment and three-phase distribution systems.
• Optimised for Sensitivity: The combination of 100MΩ input impedance and just 4.6pF input capacitance minimises circuit loading, preserving signal accuracy on sensitive, high-impedance nodes.
• Integrated Compensation: The built-in compensation unit allows for precise calibration to match the input of your oscilloscope, with an adjustment range of 10 to 25pF.
• Practical Design: The 1.2m lead length offers excellent flexibility and reach, facilitating measurements in confined or complex setups. The robust construction ensures durability for demanding workshop, laboratory, or field service use.

This oscilloscope probe kit is an indispensable tool for electronics engineers, technicians, and hobbyists working on power electronics, switch-mode power supplies, motor drives, or any application requiring safe and accurate high-voltage signal analysis.
