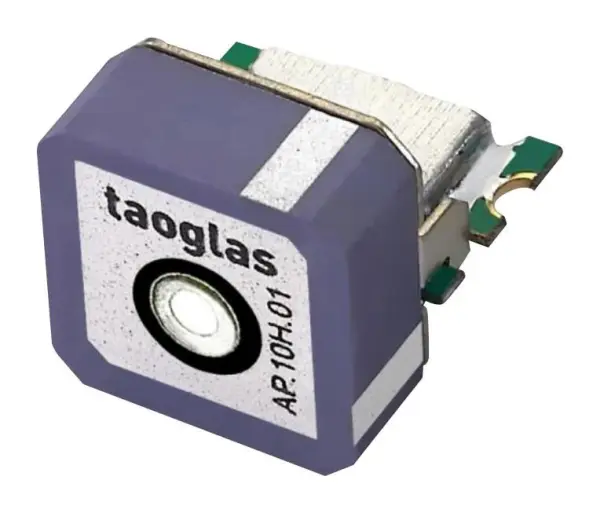

TAOGLAS Right Hand Circular Polarisation PCB Patch Antenna 1.57542GHz -10dBi

The TAOGLAS Right Hand Circular Polarisation PCB Patch Antenna is a precision-engineered component designed for reliable GPS and satellite communication applications. Operating at a centre frequency of 1.57542GHz, this compact antenna delivers consistent performance in demanding environments. Its right-hand circular polarisation (RHCP) configuration is optimised for compatibility with satellite signals, reducing multipath interference and improving signal integrity for more accurate positioning data.

With a low Voltage Standing Wave Ratio (VSWR) of 2:1, the antenna ensures efficient power transfer and minimises signal reflection back to the transmitter. The gain of -10dBi is tailored for applications where a low-profile radiation pattern is required, making it an ideal choice for integrated designs where space is at a premium. The antenna features a standard 50-ohm input impedance for straightforward integration with common RF circuitry.

Constructed as a PCB patch antenna, it offers a robust and cost-effective solution for surface mounting directly onto printed circuit boards. This design provides excellent mechanical stability and simplifies the assembly process within your device. The antenna's compact footprint and minimal height make it perfect for modern, slimline electronic products, including portable navigation devices, asset trackers, and IoT modules.

Key Specifications at a Glance

• Frequency: 1.57542GHz (GPS L1 Band)
• Polarisation: Right Hand Circular (RHCP)
• Gain: -10dBi
• VSWR: 2:1
• Impedance: 50 ohms
• Mounting: PCB Surface Mount
• Dimensions: 22mm (W) x 33mm (H) x 2mm (D)
• Weight: 35.5 grams

This TAOGLAS antenna is a dependable and high-quality RF solution, engineered to provide stable connectivity and enhance the performance of your location-based and communication systems.
