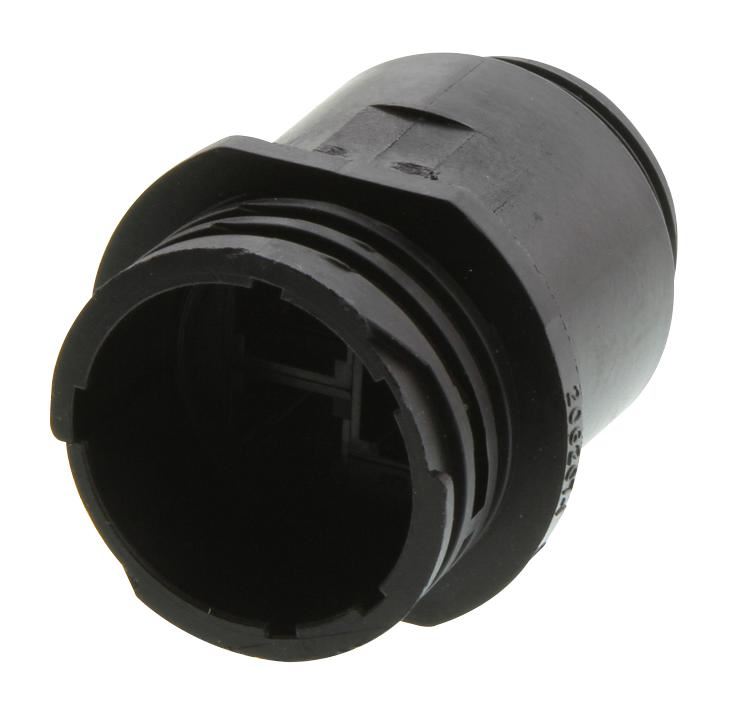

TE Connectivity 206207-1 3-Way Pin Contact Receptacle
TE Connectivity CPC Series 3-way receptacle with 25A pin contacts for commercial applications, UL-rated thermoplastic housing.
The TE Connectivity 206207-1 is a 3-position straight free-hanging receptacle designed for pin type contacts with a 17-3 insert arrangement. This high-quality CPC connector features a UL94V-0 rated black thermoplastic housing, ensuring durability and reliability in various applications.
Key Features
- Lightweight yet robust thermoplastic housing
- Quick connect and disconnect capability with threaded assist and positive detent coupling
- Polarised for proper mating of connector halves
- Keyed mating alignment for accurate connection
- Threaded coupling mating retention for secure fastening
- Contact protection for enhanced safety and longevity
Technical Specifications
- Accepts Type XII power contacts carrying up to 25A per contact
- Accommodates wire sizes from 16 to 10AWG (1.4 to 5mm²)
- Part of the CPC Series 3 product range
- Circular connector shell style: Cable Mount Receptacle
- 3 contacts for secure electrical connections
This connector is ideal for commercial applications where reliable and secure electrical connections are required.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to United States: 3-5 business days*
- Free Shipping Included
- Commercial applications
- Contact Type: Pin
- No. of Contacts: 3
- Insert Arrangement: 17-3
- Housing Material: UL94V-0 Rated Thermoplastic
- Current Rating: 25A per contact
- Wire Size Range: 16-10AWG (1.4-5mm²)
- Weight: 20g
- Product Range: CPC Series 3
- Shell Style: Cable Mount Receptacle
