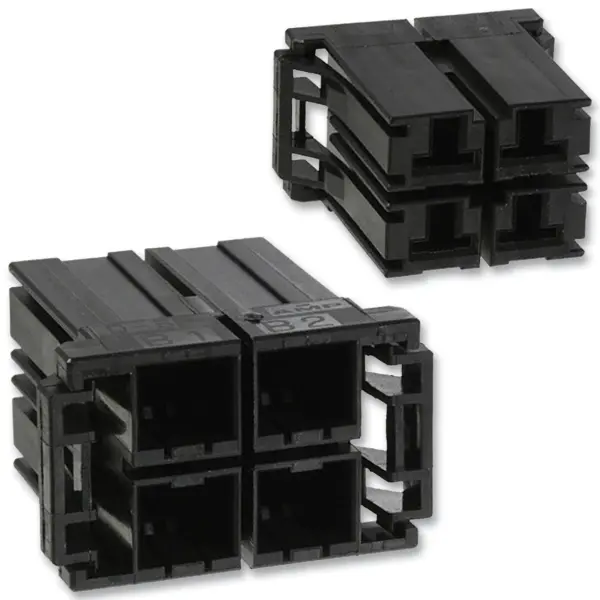

TE Connectivity 4-Way Socket Receptacle Housing Latch Locking

The TE Connectivity 4-Way Socket Receptacle Housing offers a four-way wire-to-board connection with an integrated latch locking mechanism that helps prevent accidental disconnection.

Overview

The integrated locking latch is designed for equipment subject to vibration, movement, or regular handling. By helping to keep connections secure, it supports signal integrity and power continuity and may reduce the risk of system failure or intermittent faults within electronic assemblies.

The latch provides a positive click upon engagement, giving both visual and tactile confirmation that the connection is secure. The compact form factor allows efficient use of space on printed circuit boards (PCBs), supporting high-density layouts.

Key Features

• Secure Locking Mechanism: The integrated latch provides a positive lock to help prevent wires from becoming loose or detached.
• Vibration Resistant: Engineered to maintain connections in high-vibration environments.
• Reliable Connectivity: Supports stable electrical connections for consistent signal and power transmission.
• Space-Efficient Design: Compact dimensions allow flexible placement on circuit boards.
• Durable Construction: Designed for repeated mating cycles and long service life.

Applications

Suited to complex control panels, automotive electronics, machinery, and other environments where connection reliability is essential.

Dimensions

Width 2.2, depth 0.2, and height 3.3, with a weight of 8.165 g.

Choose the TE Connectivity 4-Way Socket Receptacle Housing when a secure, latch locked four-way connection is required for wire-to-board assemblies.
