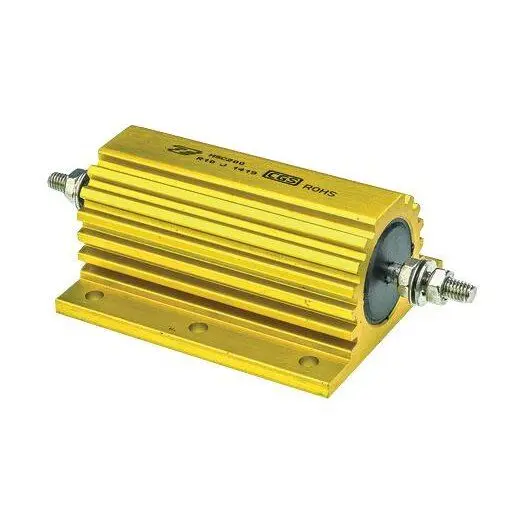

TE Connectivity HS Series Wirewound Resistor 100R 200W 5%

The TE Connectivity HS series aluminium housed power resistor is an extremely stable wirewound component designed for dissipating high power in limited spaces while maintaining a relatively low surface temperature. Power is rapidly dissipated as heat through the aluminium housing to a specified heatsink, ensuring reliable performance and stability even under demanding conditions.

This versatile resistor is suitable for general-purpose applications, power supplies, power generation, and the traction industry. Typical uses include functioning as a braking or balancing resistor, capacitor charging and discharging, crowbar circuits, filters, and general use within electrical machinery.

Featuring a threaded stud terminal for secure panel mounting, this resistor offers a resistance value of 100 ohms with a tolerance of ±5% and a power rating of 200W. It operates effectively across a wide temperature range from -55°C to 250°C, with a temperature coefficient of ±50ppm/°C and a voltage rating of 1.9kV. Measuring 43 mm in height, 33 mm in width, and 15 mm in depth, it weighs 360 grams.

Key Features

• Aluminium housed for rapid heat dissipation
• Wirewound technology for optimum stability
• Threaded stud terminals for secure panel mounting
• Suitable for high power and high voltage applications
