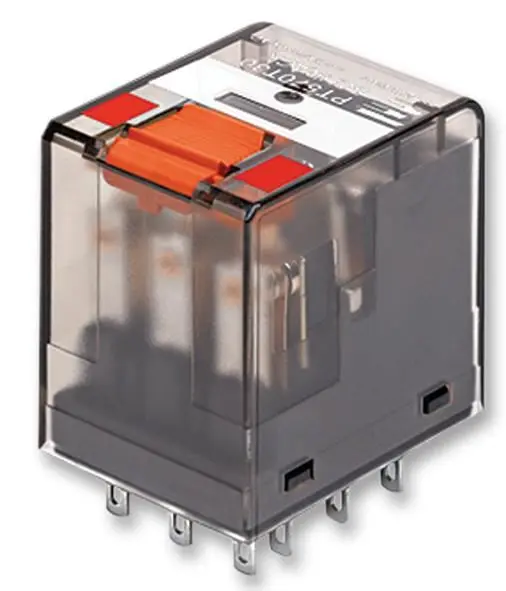

TE Connectivity PT Series 230V AC Miniature Relay

The TE Connectivity PT Series 230V AC Miniature Relay is a versatile and robust component designed for universal application within control and automation systems. This plug-in relay features an AC coil and is engineered for reliability in a wide range of industrial and commercial environments.

A key feature of this relay is its 2-form-C (DPDT) contact configuration, constructed from AgNi 90/10 material, providing dependable switching performance. It includes a manual test tab for easy operational checking and a mechanical indicator for clear visual status confirmation at a glance. The relay is supplied with white marking tabs for convenient circuit identification during installation and maintenance.

Built to endure demanding conditions, it operates effectively across a broad temperature range from -40°C to 70°C. The unit is designed with standard 2.8mm quick-connect terminals, facilitating swift and secure wiring without the need for specialised tools. This makes it an efficient choice for panel builders and maintenance engineers seeking to reduce installation time.

With approvals from major standards bodies including UL and VDE, this relay meets stringent international safety and performance criteria. Its compact dimensions allow for space-efficient mounting in control cabinets and other enclosures where panel real estate is at a premium. The PT series relay represents a reliable and widely recognised solution for process control, machinery automation, and various other electromechanical switching tasks.
