TEMPO AT8LK LAN Tone and Probe Tester Kit

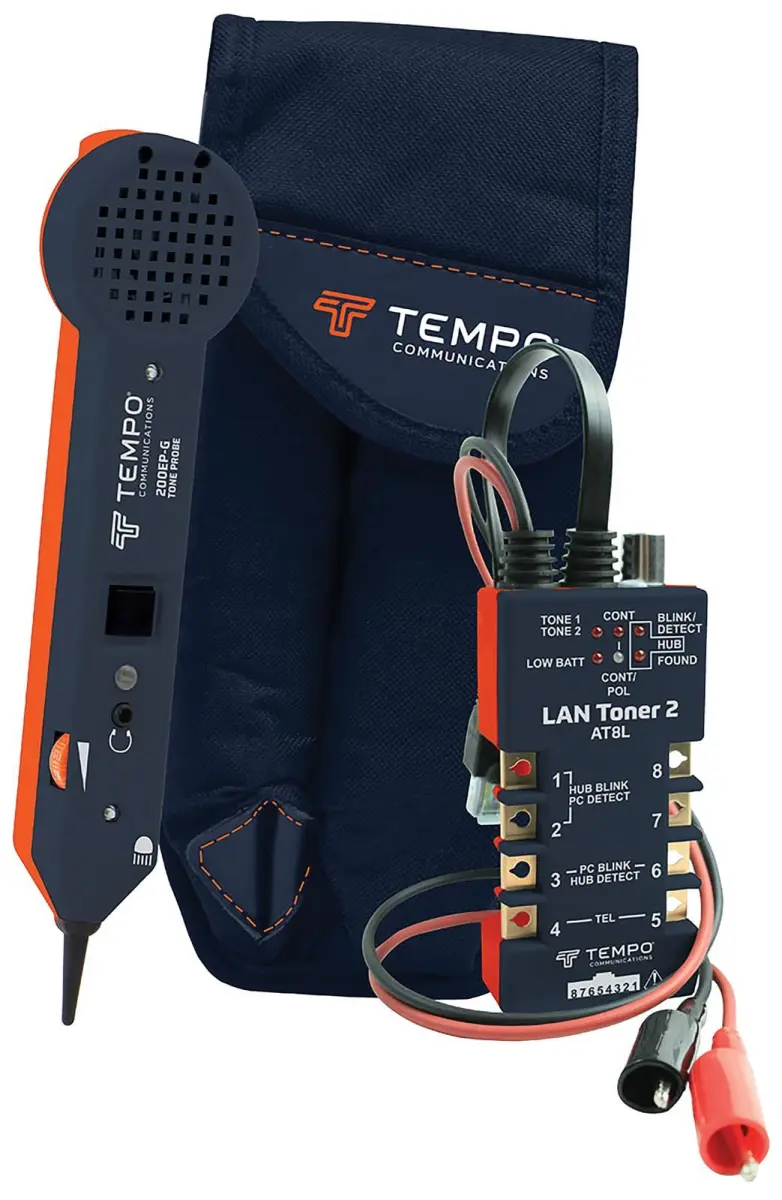

The TEMPO AT8LK LAN Tone and Probe Tester Kit provides a single wire identification solution for the network professional. This comprehensive kit combines the AT8L LAN Toner and the 200GX Inductive Amplifier, all housed within a rugged carrying case for secure transport and storage.

Designed specifically for network installation and maintenance, the LAN Toner features the unique ability to send tone in addition to blinking hub, switch port, and PC activity lights for fast and accurate identification. To meet the diverse demands of network professionals, the AT8L incorporates two selectable tone outputs for multiple line identification, continuity testing, and polarity indication for rapid outlet identification.

The device includes 8-position modular breakout tabs for testing both Datacom and Telecom wiring systems. Additional functional features include a low battery indication and an automatic shut-off function to preserve battery life. The 200GX Inductive Amplifier offers an adjustable volume probe with a visual-signal indicator, alongside a special probe tip designed to protect against damage to sensitive electronics.

Applications

Suitable for use on any wiring system, this kit is ideal for Datacom, Telecom, Security/Alarm, Audio, and CATV applications. It allows users to trace wires, perform basic testing on Local Area Network cabling, and detect active hubs and switches.

Specifications

• Kit Includes: AT8L LAN Toner, 200GX Inductive Amplifier, rugged carrying case
• Key Functions: Send tone, check continuity, test polarity on any pair
• Features: Blink hub, switch port and PC activity lights, two selectable tone outputs, low battery indication, automatic shut-off
• Probe Features: Adjustable volume, visual-signal indicator, special probe tip for sensitive electronics
• Dimensions: 43 mm x 33 mm x 15 mm
• Weight: 470 grams
