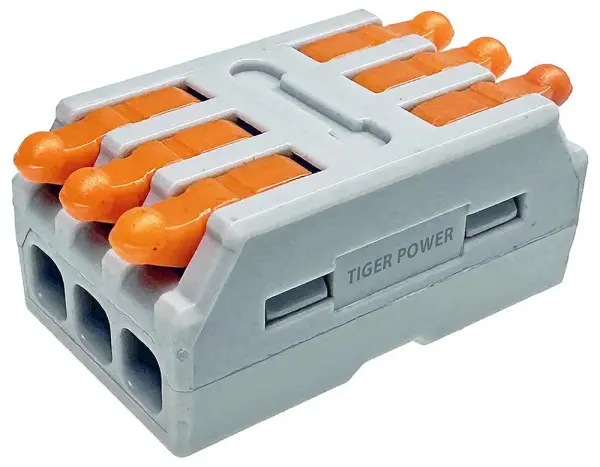

Tiger Power 3-Way Lever Lock Terminal Block Connector, 32A, Pack of 5

The Tiger Power TGR-QC-3-3 is a premium 3-way quick wire inline lever lock terminal block connector designed for rapid, secure, and screwless electrical connections. It offers a rated voltage of 250V AC and a robust current rating of 32A, making it suitable for a wide range of domestic and commercial wiring applications. Its innovative lever termination system allows for faster installation compared to traditional screw connectors, significantly reducing labour time and effort.

Featuring a screwless connection, this terminal block ensures a reliable and maintenance-free joint. The required wire strip length is 9mm, and it accommodates a broad wiring range from 0.08mm² to 4mm² (28AWG to 12AWG), providing excellent versatility for different cable sizes. This flexibility makes it an ideal choice for control panels, lighting circuits, appliance wiring, and other electrical assemblies where a compact and efficient connection solution is needed.

Each connector measures 31.8mm in length, 18mm in width, and 13.7mm in height, offering a space-saving design that is easy to install in confined spaces. Supplied in a convenient pack of five, it provides excellent value for multiple connection points within a single project. The product is part of the reliable Tiger Power TGR-QC series, known for its quality and durability in electrical components.

Key Features:

• Lever Lock Mechanism: Enables quick, tool-free wire insertion and removal for faster installation and modifications.
• High Current Rating: Rated for 32A at 250V AC, suitable for demanding electrical circuits.
• Wide Compatibility: Accepts wire sizes from 28AWG to 12AWG (0.08mm² to 4mm²).
• Compact Design: Small footprint allows for high-density wiring in control cabinets and enclosures.
• Secure Connection: The clamping mechanism ensures a gas-tight, vibration-resistant contact for long-term reliability.
