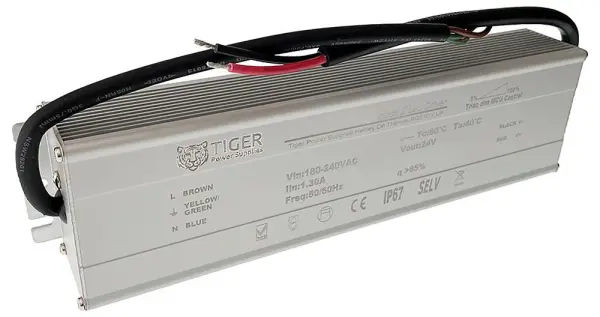

Tiger Power Mains Dimmable LED Driver 24V 150W IP67

The Tiger Power Mains Dimmable LED Driver delivers a constant 24V output with a maximum power of 150W and a current rating of 6.25A. Engineered for reliable performance, this IP67 waterproof driver is designed for indoor use and is ideal for powering LED strip lighting in a wide range of applications.

This driver is compatible with good quality, low load dimmer switches, including the Varilight V-Pro series, and supports both leading and trailing edge dimmers for flexible installation. For optimal dimming performance, it is recommended that the connected load is between 70% and 100% of the driver's rating, with a dimming range of 10–100% depending on the switch used.

Featuring a universal 180–240V AC input voltage, soft start functionality, and low ripple and noise, this driver ensures smooth and stable LED operation. With high efficiency and a power factor of >0.95, it helps to minimise energy waste. The constant voltage output is perfect for LED strips, while screw terminals allow for fast and secure wiring.

Key Features

• Mains dimmable LED driver with 24V DC output
• Maximum output power: 150W, output current: 6.25A
• Waterproof IP67 rated for indoor use
• Compatible with leading and trailing edge dimmers
• Universal input voltage: 180–240V AC
• Soft start, low ripple and noise
• High efficiency with power factor >0.95
• Screw terminals for quick installation

Dimensions

• Height: 40mm
• Width: 30mm
• Depth: 25mm
