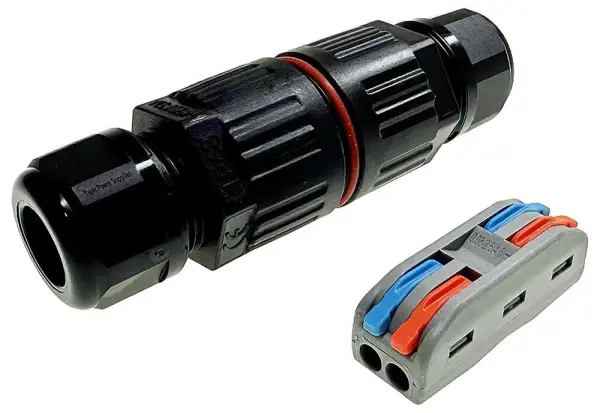

Tiger Power IP68 2 Pole Waterproof Cable Quick Connector Black

The Tiger Power IP68 2 Pole Waterproof Cable Quick Connector in black provides a reliable and secure solution for joining cables in demanding environments. Rated to IP68, it offers excellent protection against water and dust ingress when correctly installed.

Designed for versatility, this connector is suitable for both AC and DC connections and accommodates either 2-pole (2-wire) or 3-pole (3-wire) configurations. It features an internal Quick Connect terminal block, making wire attachment extremely simple and fast.

To ensure a watertight seal across a wide range of cable sizes, two sets of interchangeable black silicon seals (waterproof rubber cores) are included. It supports round cables with an outside diameter between 4mm and 10mm, and a wiring cross-section from 0.5mm² to 4mm². The connector handles a maximum current of 32A and a maximum voltage of 450V.

Important Installation Note

Please ensure the correct set of included silicon seals is selected and properly fitted for your cable type. Using the wrong size or fitting it incorrectly will compromise the waterproof integrity of the connection.

Key Specifications

• Rating: IP68
• Poles: 2 (suitable for 2 or 3 wire connection)
• Cable Diameter: 4mm to 10mm
• Wiring Cross Section: 0.5mm² to 4mm²
• Maximum Current: 32A
• Maximum Voltage: 450V
• Dimensions: 43 mm x 33 mm x 15 mm
• Weight: 38 grams
