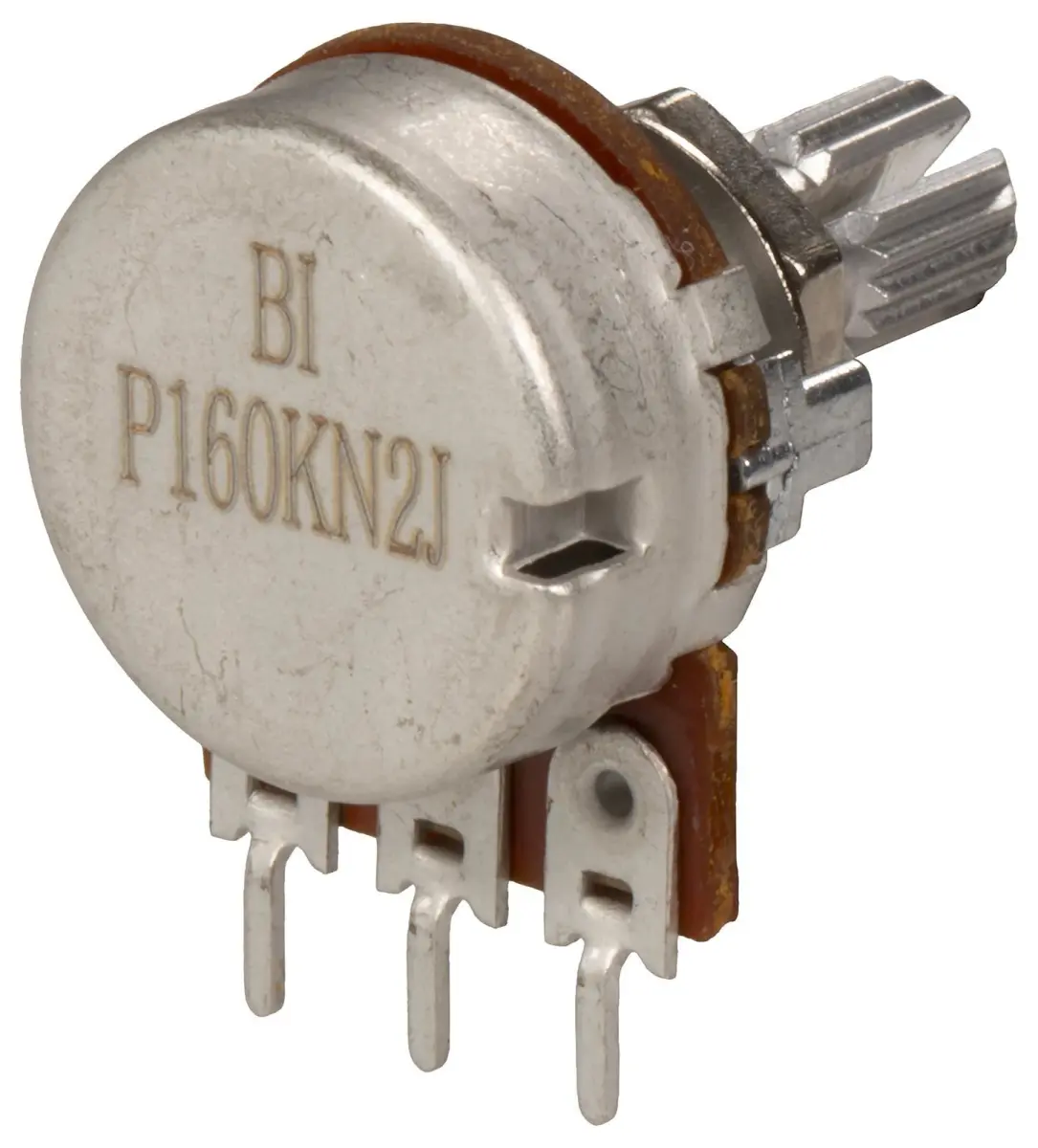

TT Electronics P160 10K 1-Turn Linear Rotary Potentiometer, 200mW
TT Electronics P160 Series 10K 1-turn linear rotary potentiometer, 200mW, conductive plastic, panel mount. Dimensions: 43x33x15mm.
The TT Electronics P160 Series Rotary Potentiometer offers precise control with a 10kΩ resistance and a linear track taper. Designed for reliable performance, this single-turn potentiometer features a conductive plastic element and a screwdriver slot side adjustment for accurate tuning. Its robust construction includes a metal shaft and bushing, ensuring durability in demanding environments.
This panel mount potentiometer is equipped with PC pin terminals for straightforward integration into your circuit boards. With a power rating of 200mW and a resistance tolerance of ±20%, it operates efficiently across a temperature range from -20°C to 70°C. The device boasts a nominal actual electrical travel of 260° and an impressive rotational life of 100,000 cycles, providing long-lasting reliability for your electronic applications.
Key Specifications
- Track Resistance: 10kΩ
- No. of Turns: 1
- Track Taper: Linear
- Power Rating: 200mW
- Resistance Tolerance: ±20%
- Adjustment Type: Screwdriver slot side adjustment
- Terminals: PC Pin
- Mounting: Panel Mount
- Insulation Resistance: 100MΩ at 250VDC minimum
- Dielectric Strength: 500VAC at 1 minute
- Nominal Actual Electrical Travel: 260°
- Rotational Life: 100,000 cycles
- Operating Temperature Range: -20°C to 70°C
- Dimensions: 43mm (H) x 33mm (W) x 15mm (D)
- Weight: 7.342g
