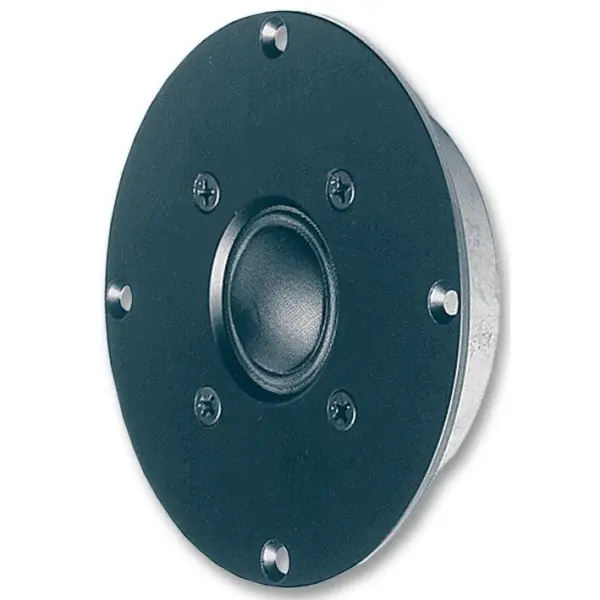

Visaton 1 Inch Fabric Dome Tweeter 120W RMS 8 Ohm

Experience crystal-clear high-frequency reproduction with the Visaton 1 Inch Fabric Dome Tweeter. This precision driver is engineered for the high-range audio spectrum, delivering exceptional clarity and detail for frequencies above 2kHz. Its optimised fabric dome shape, enhanced with a specialised double coating, works in concert with a highly damped surround to produce a remarkably linear and smooth frequency response. This design minimises distortion and ensures accurate sound dispersion, making it an ideal choice for high-fidelity audio systems.

At the heart of this tweeter is a powerful magnetic driver system, engineered for high power handling and reliability. The inclusion of a ferrofluid-cooled voice coil is a critical feature, effectively managing heat dissipation during extended use and at high volumes. This cooling technology protects the delicate components, enhances power efficiency, and contributes to the driver's overall longevity and stable performance. The robust construction ensures it can handle demanding audio applications without compromise.

Designed for versatility and performance, this tweeter is suitable for a wide array of audio projects. Whether you are upgrading an existing hi-fi system, constructing custom loudspeakers, or integrating it into a professional sound reinforcement setup, this driver provides the sonic accuracy and power required. Its compact, round shape and panel-mount design facilitate straightforward installation into various enclosures and baffles.

Key Specifications

• Transducer Function: Tweeter
• Driver Size: 1 Inch (25.4mm)
• Dome Material: Fabric with double coating
• Power Handling (RMS): 80 Watts
• Power Handling (Max): 140 Watts
• Nominal Impedance: 8 Ohms
• Frequency Response: 1kHz - 30kHz
• Resonant Frequency: 1.5kHz
• Sound Pressure Level (SPL): 90dB
