Visaton 14mm Polycarbonate Dome Tweeter, 70W RMS, 8 Ohm
Visaton 14mm polycarbonate dome tweeter, 70W RMS, 8 Ohm. Wide frequency response 2200-23000Hz, ferrofluid cooling, 91dB SPL.

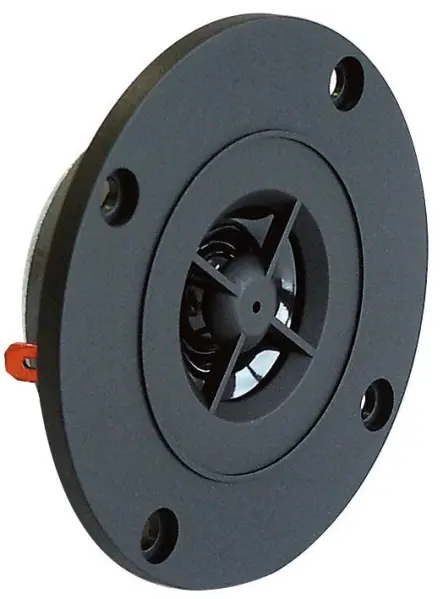

The Visaton 14mm Polycarbonate Dome Tweeter (model DTW72-8OHM) is a high-performance driver designed for the high-frequency range above 4kHz. Featuring an ultra-light polycarbonate dome and a powerful magnetic drive, this tweeter delivers balanced frequency response and excellent omnidirectional sound distribution, making it an ideal choice for a wide range of audio applications.
Equipped with a ferrofluid-cooled voice coil, the tweeter achieves good efficiency and high power handling, ensuring reliable performance even at elevated output levels. With a 70W RMS power rating and 8 ohm impedance, it integrates seamlessly into multi-way speaker systems, providing clear and detailed high-frequency reproduction.
Key Specifications
- Frequency Response: 2200Hz to 23000Hz (-10dB)
- Mean Sound Pressure Level: 91dB (1W/1m)
- Resonant Frequency: 3000Hz
- Voice Coil Diameter: 14mm
- Cut-out Diameter: 50mm
- Front Pole-Plate Height: 2mm
- Terminals: 4.8 x 0.8mm (+) / 2.8 x 0.8mm (–)
- Dimensions: 72mm x 21.1mm
The tweeter's compact design and bare mounting configuration allow for flexible installation in custom speaker enclosures. Its robust construction and advanced engineering ensure long-lasting performance, making it a dependable component for audio enthusiasts and professionals alike.
