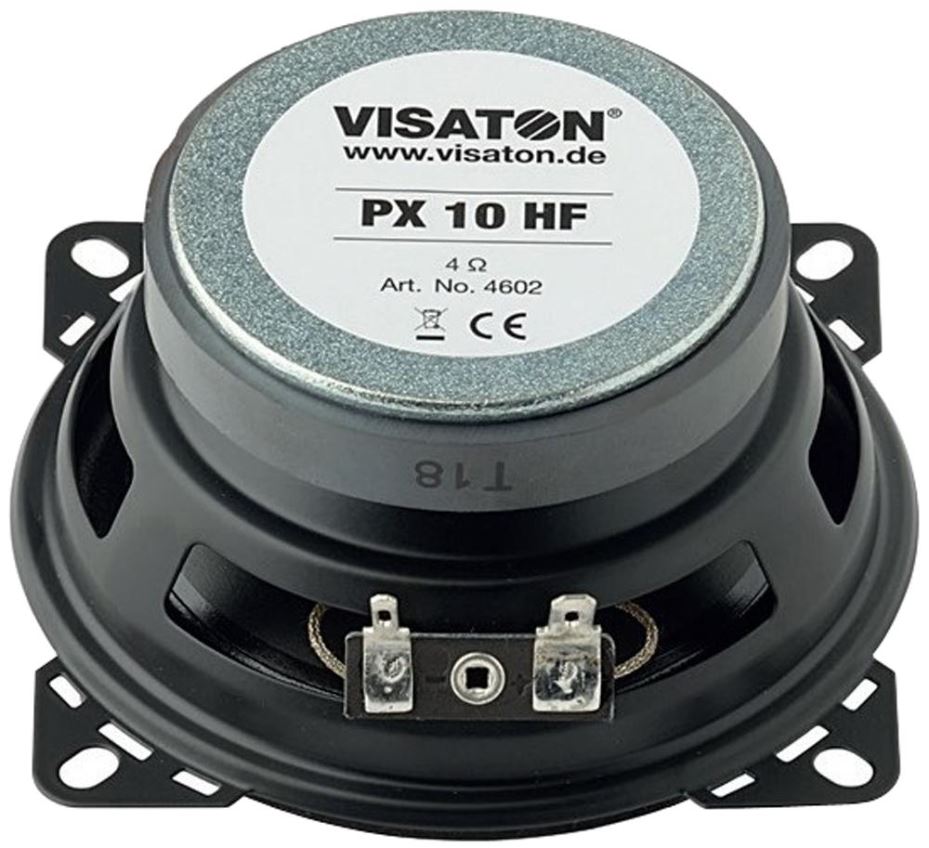

VISATON 4-Inch 20W Coaxial Driver, 4 Ohm, 100mm
High-performance VISATON 4-inch 20W coaxial driver with waterproof PP-cone & recessed tweeter for sleek audio installations.
The VISATON 4-Inch 20W Coaxial Driver is a high-performance 2-way coaxial speaker designed for easy installation in vehicles or other applications requiring compact audio solutions. Featuring a waterproof PP-cone, this driver ensures durability while delivering clear and balanced sound.
The coaxial design integrates a piezoelectric tweeter, which is recessed to allow the speaker to be mounted behind flat grilles or covers, making it ideal for sleek, low-profile installations. With a nominal impedance of 4 ohms and an RMS power handling of 20W (30W peak), this driver is perfect for a variety of audio systems.
Key Features
- Waterproof PP-Cone – Resistant to moisture, ensuring long-term reliability in various environments.
- Recessed Tweeter – Allows for installation behind flat covers or grilles for a clean, unobtrusive look.
- Wide Frequency Response (70Hz–13kHz) – Delivers well-balanced audio performance for both midrange and high frequencies.
- Compact & Easy Installation – Designed for standard 4-inch (100mm) cutouts, with mounting hole distances of 115mm.
- Efficient Performance – High sensitivity (85dB) ensures good output even with low-power amplification.
Specifications
- Output Power: 20W RMS (30W Max)

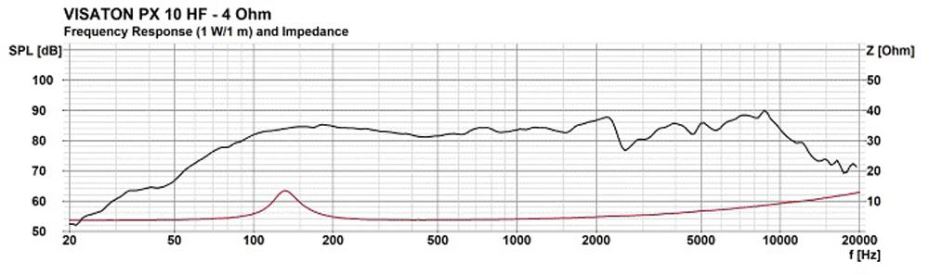

- Frequency Response: 70Hz–13kHz
- Nominal Impedance: 4Ω
- Sensitivity: 85dB
- Resonance Frequency: 136Hz
- Voice Coil Diameter: 20mm
- Cutout Diameter: 92mm
- Mounting Hole Distance: 115mm
- Connections: 4.8x0.8mm (+) & 2.8x0.8mm (-)
Applications
This coaxial driver is versatile and well-suited for a range of audio installations, including automotive sound systems, business audio, public announcements, DJ setups, home audio, and educational environments.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Shipped within 0-2 business days
- Shipping to Worldwide: 6-7 business days*
- Free Shipping Included
- Car audio systems
- Business sound setups
- Home audio applications
- DJ equipment
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Driver Type: Coaxial
- Output Power: 20W RMS (30W max)
- Frequency Response: 70Hz–13kHz
- Nominal Impedance: 4Ω
- Sensitivity: 85dB
- Resonance Frequency: 136Hz
- Voice Coil Diameter: 20mm
- Height of Winding: 5.2mm

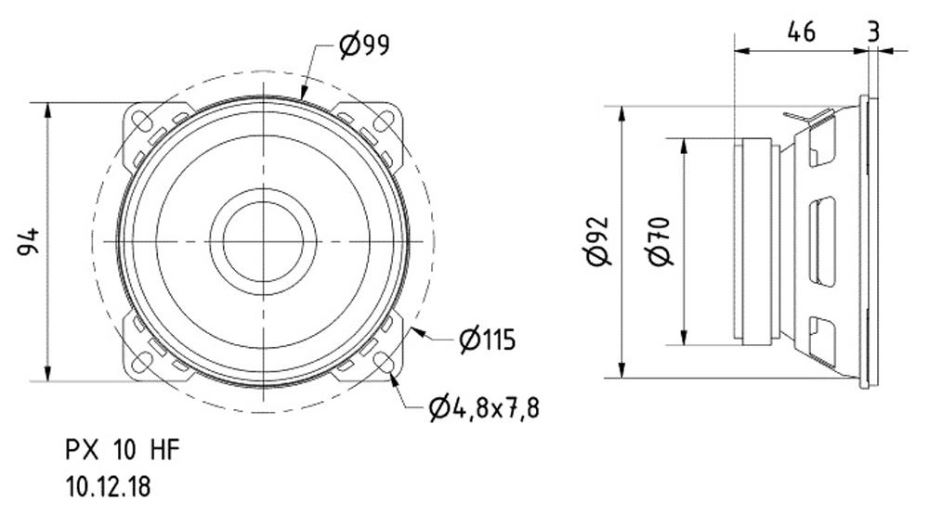

- Cutout Diameter: 92mm
- Mounting Hole Distance: 115mm
- Connections: 4.8x0.8mm (+) & 2.8x0.8mm (-)
- External Diameter: 100mm (4 in)
- External Depth: 49mm
- Speaker Shape: Round
- Speaker Mounting: Bare mount
- Material: Waterproof PP Cone
- Tweeter Type: Piezoelectric
- Weight: 400g
