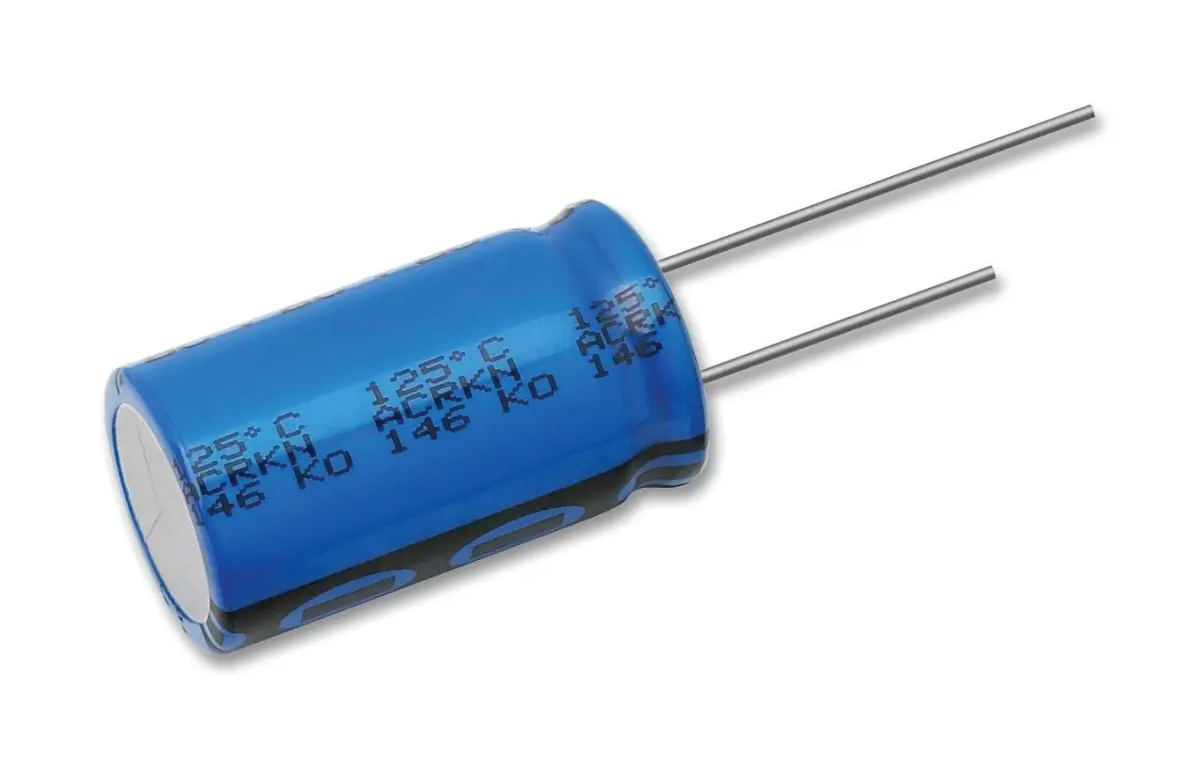

Vishay 146 RTI Series Electrolytic Capacitor, 100µF, 50V, Radial

The Vishay 146 RTI Series Electrolytic Capacitor is a robust and reliable radial-leaded component, offering stable performance for a wide range of electronic applications. This polarised capacitor has a capacitance of 100µF and a rated DC voltage of 50V, making it suitable for power supply filtering, coupling, and decoupling circuits where consistent capacity is required.

Constructed to endure demanding conditions, it features an impressive operational lifespan of 2500 hours at the maximum temperature of 125°C. Its broad operating temperature range, from -55°C to +125°C, ensures functionality in both extreme cold and high-heat environments, providing design flexibility for automotive, industrial, and consumer electronics.

A key performance attribute is its ripple current handling capability of 420mA, which is essential for smoothing voltage in switching power supplies and other applications with significant AC components. The component is compliant with the AEC-Q200 qualification standard, confirming its suitability for use in automotive electronics where high reliability is non-negotiable.

The capacitor comes in a standard radial leaded package with a 5mm lead spacing, facilitating easy PCB mounting and assembly. Its compact physical dimensions contribute to efficient use of board space without compromising on electrical performance or longevity.

Specifications

• Capacitance: 100µF
• Rated DC Voltage: 50V
• Capacitance Tolerance: ±20%
• Polarity: Polarised
• Package Type: Radial Leaded
• Lead Spacing: 5mm
• Ripple Current: 420mA
• Lifetime @ Temperature: 2500 hours @ 125°C
• Operating Temperature Range: -55°C to +125°C
• Qualification: AEC-Q200 compliant
• Dimensions: 43mm (Height) x 33mm (Width) x 15mm (Depth)
