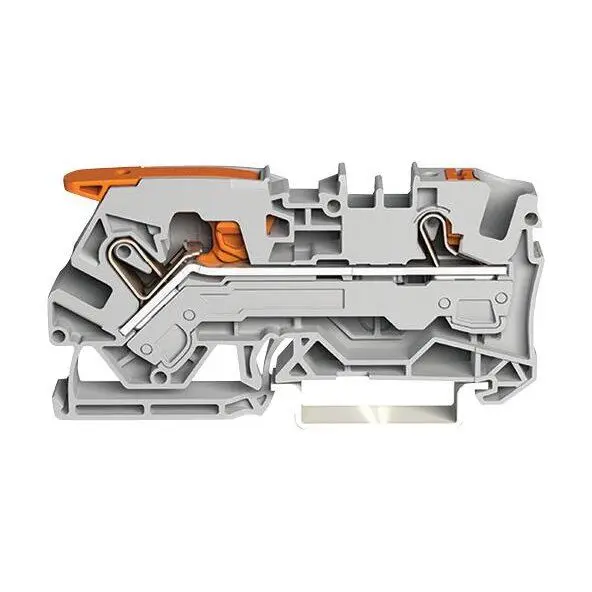

WAGO 2 Conductor Through Terminal Block Lever, Push Button Cage Clamp, 35mm DIN

The WAGO 2 Conductor Through Terminal Block is a versatile and reliable connection solution designed for professional electrical installations. This grey terminal block combines the convenience of a lever and a push-button cage clamp, making it an efficient choice for connecting solid and stranded conductors. Rated for 800V and 41A, it accommodates a wide range of wire sizes from 20AWG to 8AWG, ensuring compatibility with many common industrial and commercial wiring applications.

The integrated lever mechanism allows for effortless termination of larger conductors without the need for tools, simply lower the lever to clamp the wire securely in place. For quick modifications or wire changes, the push-button release enables fast disconnection, saving valuable time during installation, maintenance, or troubleshooting. The terminal block is designed for mounting on a standard 35mm DIN rail, offering a secure and organised method for panel building.

Constructed from high-quality materials, this through terminal block is built for durability and long-term performance in demanding environments. Its compact dimensions allow for high-density mounting, maximising space within control cabinets and electrical enclosures. The through design allows for continuous conductor runs, simplifying wiring layouts and reducing the need for additional jumpers.

Key Features:

• Dual-Action Clamp: Lever for easy, tool-free installation and a push-button for quick release.
• High Performance: Rated for 800V and 41A for robust electrical performance.
• Wide Compatibility: Accepts conductors from 20AWG to 8AWG (0.5mm² to 10mm²).
• Secure Mounting: Designed for quick snap-on fitting to 35mm DIN rails.
• Through Connection: Allows conductors to pass straight through, ideal for daisy-chaining circuits.
