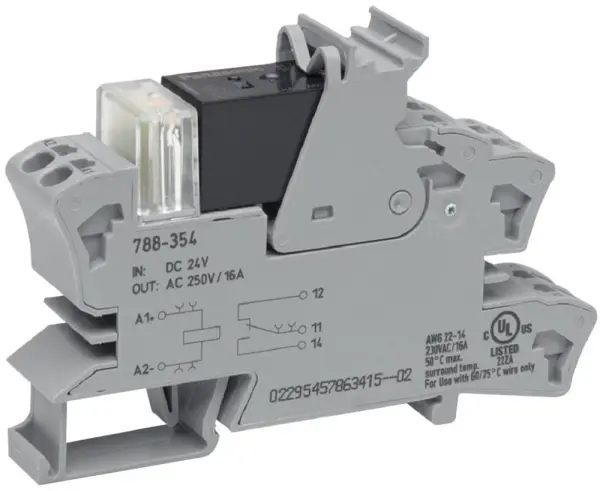

WAGO 24V DC DIN Rail Relay Module, SPDT, 16A

The WAGO 24V DC DIN Rail Relay Module is a robust, industrial-grade component designed for reliable switching and control applications. It features a single SPDT (Single Pole Double Throw) changeover contact, capable of handling currents up to 16A, making it a versatile solution for a wide range of electrical circuits. The relay is designed for secure and straightforward installation, incorporating the proven WAGO Push-in Cage CLAMP® connection technology. This system allows for fast, tool-free wiring with solid or fine-stranded conductors ranging from 0.34mm² to 2.5mm² (22AWG to 14AWG), with a recommended strip length of 9mm to 10mm. A clear red LED provides immediate visual status indication, simplifying system monitoring and fault diagnosis.

Housed within a compact and durable case, this relay from the WAGO 788 Series is engineered for efficiency and longevity. Its DIN rail mounting design ensures easy integration into standard control panels, cabinets, and enclosures, saving valuable space and streamlining assembly. The relay is rated for a maximum contact voltage of 250V AC, suitable for many mains-level switching tasks in industrial and commercial environments. Its 24V DC coil voltage makes it compatible with common low-voltage control systems, PLCs, and automation equipment.

Key Features & Benefits

• Reliable Switching: SPDT configuration with a 16A contact rating for dependable control of motors, solenoids, heaters, and lighting.
• Quick Connect: Push-in Cage CLAMP® terminals enable rapid, vibration-resistant connections without the need for screw-tightening, reducing installation time.
• Clear Status Indication: Integrated red LED provides instant visual confirmation of the relay's energised state.
• Versatile Wiring: Accommodates a broad range of conductor types and sizes, offering flexibility for various installation requirements.
• Space-Saving Design: Compact
