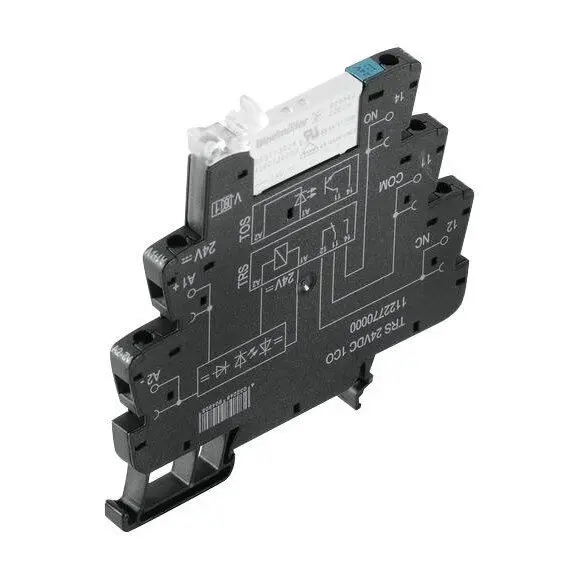

WEIDMULLER SPDT Power Relay, 24V DC, 6A, TERM Series, DIN Rail

The WEIDMULLER TERM Series Power Relay is a high-performance electromechanical relay designed for industrial control and automation applications. Housed in a slim 6.4mm profile, this SPDT (Single Pole Double Throw) relay features a pluggable design for easy installation and maintenance on standard DIN rails. Its innovative construction allows it to be combined with other TERM series modules to create custom switching solutions tailored to specific application requirements.

Equipped with reliable Silver Nickel (AgNi) contacts, this relay is capable of switching loads of up to 8A at 250V AC or DC. A distinctive feature is its integrated fibre-optic status display, which completely illuminates the module's ejector lever for clear, unambiguous indication of the relay's state from any viewing angle. This ejector also ensures the safe and easy removal of the switching element from its base.

For enhanced reliability and protection, the relay includes an integrated free-wheel diode and reverse polarity protection on the coil circuit. Versions with screw clamp terminals share a uniform profile, enabling straightforward parallel connection using easy-to-use cross connectors. A green LED provides additional status indication at a glance.

Key Specifications & Performance

Built for longevity, the relay offers a mechanical service life of 5 million switching cycles. It features a typical pull-in voltage of 16VDC and a drop-out voltage of 4VDC, with corresponding currents of 7mA and 2mA respectively. Electrical isolation is robust, with a creepage and clearance distance of ≥5.5mm between input and output, and an impulse withstand voltage of 6kV. The relay is rated IP20 for basic protection against solid objects.

With its compact design, clear status indication, and robust switching capabilities, the WEIDMULLER TERM Series Power Relay provides a dependable and versatile solution for controlling motors, solenoids, lamps,
