WINSTAR 128x64 Graphic LCD Module, Yellow/Green, 5V

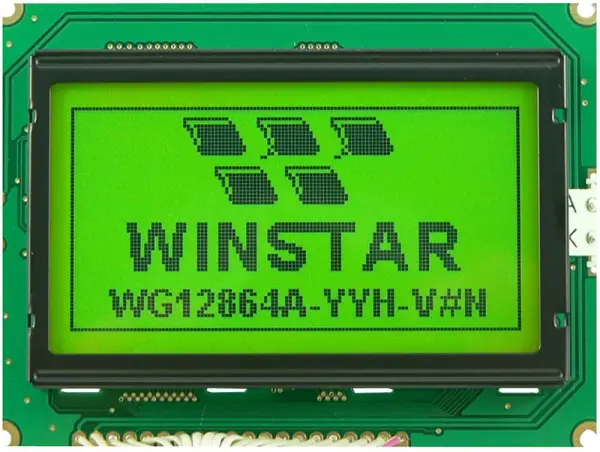

The WINSTAR WG12864A-YYH-VN is a high-performance 128x64 graphic LCD display module, featuring a yellow/green STN positive transflective display and a built-in NT7108 controller. This module provides clear, reliable visual output for a wide range of industrial and commercial applications, making it a versatile choice for your display needs.

With a 5V power supply and a 1/64 duty cycle, the module is designed for stable operation. The interface is 6800, ensuring straightforward integration with compatible systems. The module's dimensions are 93mm x 70mm x 13.6mm, with a view area of 72mm x 40mm and an active area of 66.52mm x 33.24mm. Each dot measures 0.48mm x 0.48mm with a pitch of 0.52mm x 0.52mm, delivering sharp and precise graphics.

The display type is STN Positive, Transflective, which offers good readability in both ambient light and with the backlight on. The yellow/green LED backlight enhances visibility in low-light conditions. The view direction is optimised for 6 o'clock viewing, and the module supports a font set including English, Euro, and Japanese characters.

This module operates within a temperature range of -20°C to 70°C, making it suitable for various environments. Its construction as a standalone module allows for easy integration into your projects. Whether for instrumentation, control panels, or embedded systems, this LCD module delivers dependable performance.

Specifications

• Resolution: 128x64 pixels
• Built-in controller: NT7108
• Power supply: 5V
• Duty cycle: 1/64
• Interface: 6800
• Module dimensions: 93mm x 70mm x 13.6mm
• View area: 72mm x 40mm
• Active area: 66.52mm x 33.24mm
• Dot size: 0.48mm x 0.48mm
• Dot pitch: 0.52mm x 0.52mm
• LCD type: STN Positive, Transflective
• View direction: 6 o'clock
• Backlight colour: Yellow/Green LED
• Font set: English, [[
