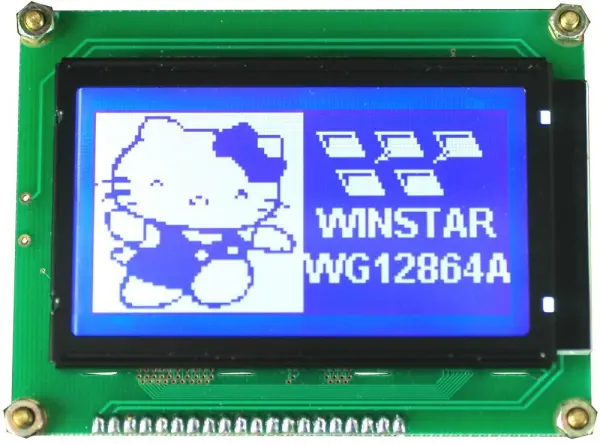

WINSTAR 128x64 LCD Graphic Display Module, White, STN Negative, Blue

The WINSTAR 128x64 LCD Graphic Display Module offers reliable and clear visual performance for your electronic projects. Featuring STN Negative transmissive technology with a striking blue display and white LED backlighting, this module ensures excellent readability in various lighting conditions. It is powered by a built-in NT7108 controller and operates on a 5V power supply, making it highly compatible with standard electronic systems.

Designed for versatile application, the module supports English, Euro, and Japanese font sets. It boasts a 1/64 duty cycle and a 6800 interface for straightforward integration. With a robust operating temperature range from -20°C to 70°C, it is well-suited for demanding environments. The view direction is optimised at 6 o'clock, providing clear visibility from a standard viewing angle.

Key Specifications

• Resolution: 128x64 pixels
• LCD Type: STN Negative, Transmissive, Blue
• Controller: NT7108
• Power Supply: 5V
• Duty Cycle: 1/64
• Interface: 6800
• Module Dimensions: 93 x 70 x 13.6mm
• View Area: 72 x 40mm
• Active Area: 66.52 x 33.24mm
• Dot Size: 0.48 x 0.48mm
• Dot Pitch: 0.52 x 0.52mm
• Backlighting: White LED
• Operating Temperature: -20°C to 70°C

This graphic display module provides a robust and efficient solution for displaying complex graphics and text across a wide range of electronic devices.
