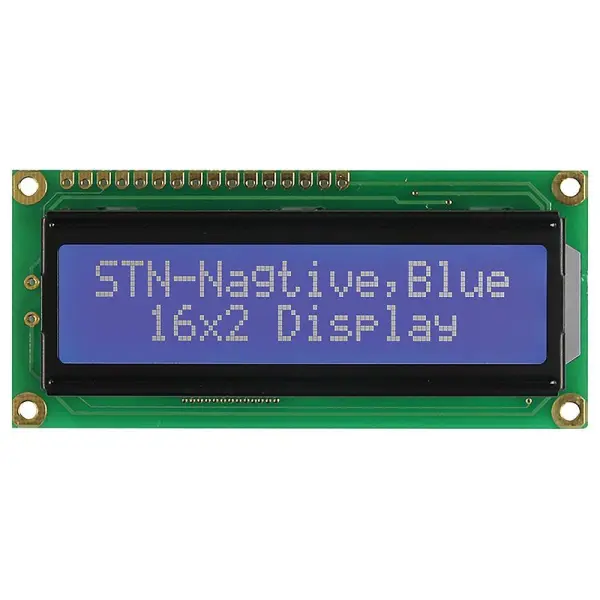

WINSTAR 16x2 LCD Display Module, White on Blue, STN Negative

The WINSTAR 16 x 2 Character LCD Display Module offers a clear visual interface for electronic projects. Featuring an STN Negative, Blue Transmissive LCD, this module provides a striking white on blue display appearance that ensures excellent readability. Equipped with an LED white backlight, the screen delivers consistent illumination for enhanced visibility in various lighting conditions.

Designed for landscape orientation, this display supports English and Japanese standard fonts. It operates on a logic voltage of 5V and features a 1/16 duty cycle, ensuring stable and efficient performance. With a view direction from 6 o'clock, it is optimised for standard user viewing angles.

Built to withstand demanding environments, the module has a wide operating temperature range from -20°C to 70°C, making it suitable for both indoor and industrial applications. The compact module dimensions measure 80 x 36 x 13mm, with a generous view area of 66 x 16mm and an active area of 56.2 x 11.5mm for clear character output.

Key Specifications

• Characters: 16 x 2
• LCD Type: STN Negative, Blue Transmissive
• Display Appearance: White on Blue
• Backlight: LED White
• Logic Voltage: 5V
• Operating Temperature: -20°C to 70°C
