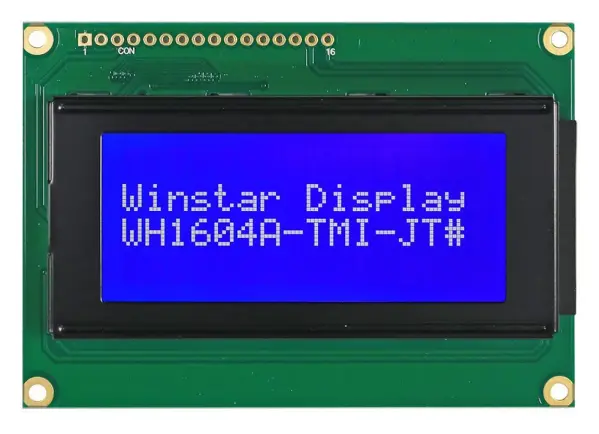

WINSTAR 16x4 Character LCD Display Module, Blue/White, STN

The WINSTAR 16x4 Character LCD Display Module offers a clear blue and white transmissive display, making it an excellent choice for a variety of electronic projects. Featuring STN (Super-Twisted Nematic) technology with a positive display mode, this module ensures good readability and contrast from the 6 o'clock viewing direction.

Equipped with a built-in ST7066U controller IC, the module supports a 6800 4/8-bit parallel interface, providing straightforward integration into your existing systems. The display features a 16x4 character format with 5x8 dots, which includes a cursor for easy user interaction. It operates on a logic voltage of 3V to 5V, with negative voltage optional for a +3V power supply, and performs reliably across a wide temperature range from -20°C to 70°C.

The backlighting is provided by a blue and white LED, ensuring the display remains vivid and easy to read in various lighting conditions. The module dimensions are compact at 87 x 60 x 13.6 mm, with an active area of 56.2 x 20.8 mm and a view area of 62 x 26 mm. It supports English, Euro, and Japanese font sets, making it versatile for global applications. Weighing just 65 grams, it is ideal for designs where space and weight are critical considerations.

Key Specifications

• Character Count: 16 x 4
• Dot Format: 5x8 dots with cursor
• Display Mode: STN, Positive, Transmissive
• Controller: Built-in ST7066U
• Interface: 6800 4/8-bit parallel
• Operating Temperature: -20°C to 70°C
• Backlighting: Blue / White LED
