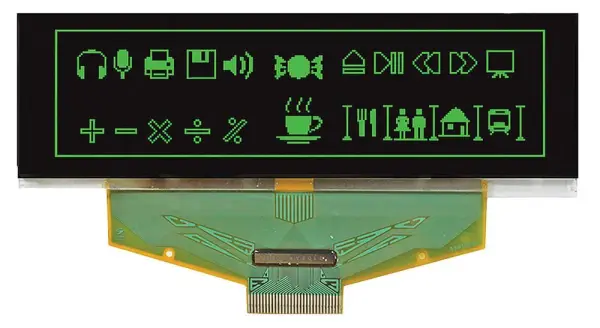

WINSTAR 3.12in OLED Display Module 256 x 64 Green

The WINSTAR 3.12-inch OLED Display Module offers high-contrast visual output with a crisp green colour on a passive matrix screen. Featuring a resolution of 256 x 64 dots, this module ensures clear and detailed image rendering for a variety of electronic applications. Its compact module dimensions of 88 x 27.8 x 2.15mm make it highly suitable for projects where space is at a premium.

Equipped with the SSD1322 IC, the display supports versatile interface options including 6800, 8080, and SPI, allowing for flexible integration into your existing hardware setups. The module operates on a low logic voltage of 2.5V and features a 4-bit greyscale, providing subtle depth to the green display output.

Designed to withstand demanding environments, this OLED module has an impressive operating temperature range from -40°C to 80°C. The active area measures 76.778mm x 19.178mm, with a precise pixel pitch of 0.3mm x 0.3mm, ensuring consistent and uniform pixel distribution across the screen.

Key Specifications

• Dot Matrix: 256 x 64 Dots
• Display Colour: Green
• Display Mode: Passive Matrix
• IC: SSD1322 (COF)
• Interface: 6800, 8080, SPI
• Drive Duty: 1/64
• Grey Scale: 4 bits
• Logic Voltage: 2.5V
• Operating Temperature: -40°C to 80°C

Whether you are developing industrial control panels, medical devices, or consumer electronics, this WINSTAR OLED module provides a reliable and energy-efficient display solution.
