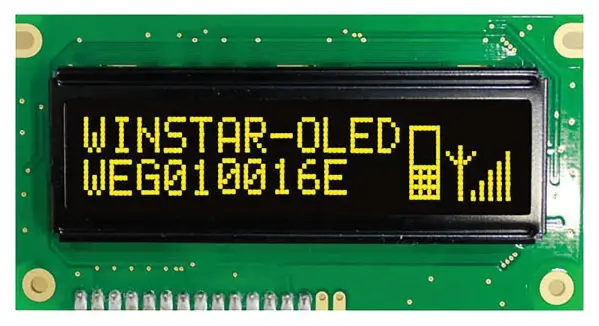

WINSTAR Graphic OLED Display Module 100x16 Yellow
WINSTAR Graphic OLED Display Module, 100x16 dots, yellow on black. 5V supply, 6800 interface, -40°C to 80°C. Ideal for embedded systems.
The WINSTAR Graphic OLED Display Module provides a high-contrast visual output with a striking yellow-on-black display appearance. Featuring a 100 x 16 dot matrix resolution, this COB (Chip-on-Board) graphic module ensures clear and crisp text and image rendering. It operates efficiently with both a supply voltage and logic voltage of 5V, making it highly compatible with standard 5V logic systems.
The module dimensions are compact at 84 x 44 x 10mm, with a view area of 66 x 16mm and an active area of 59.95 x 11.15mm. Each dot measures 0.55 x 0.65mm with a pitch of 0.60 x 0.70mm, delivering precise detail for your interface needs.
Driven by the WS0010-TX IC, it uses a 6800 interface for straightforward integration into your electronic designs. It is built to withstand demanding environments, featuring a wide operating temperature range from -40°C to 80°C.
Key Specifications
- Dot Matrix: 100 x 16 Dots
- Panel Type: OLED Yellow
- Display Appearance: Yellow on Black
- Display Construction: COB
- Supply Voltage: 5V
- Logic Voltage: 5V
- Duty: 1/16
- IC: WS0010-TX
- Interface: 6800
