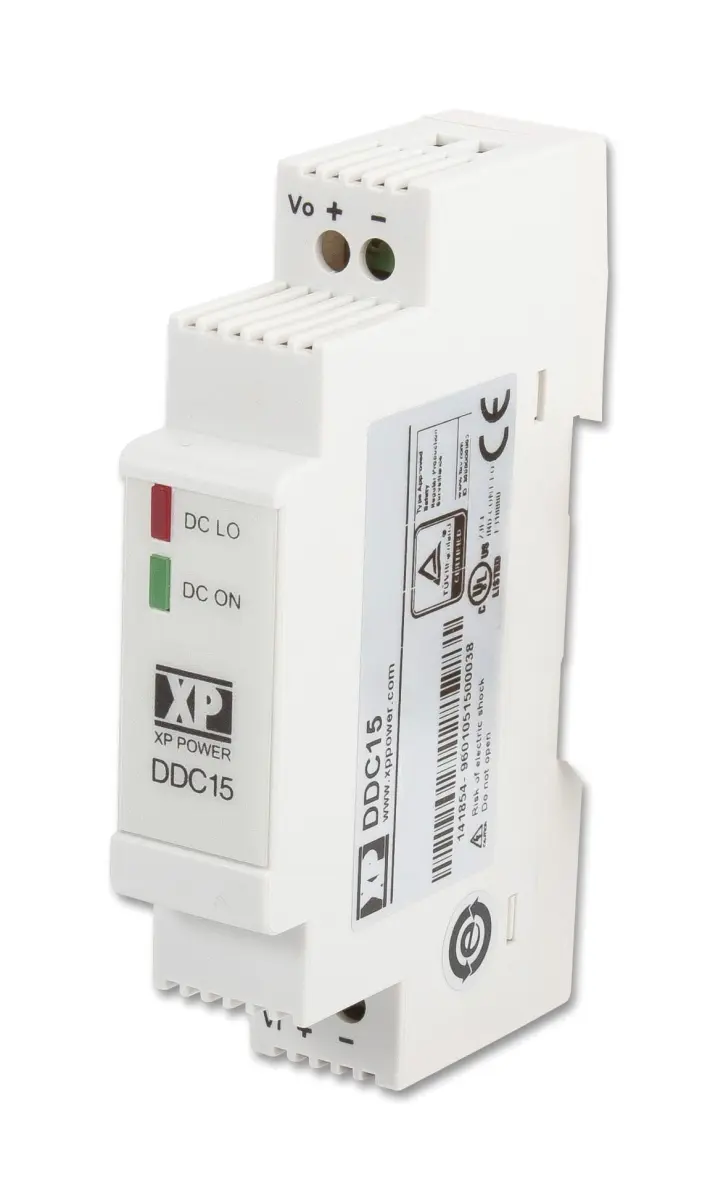

XP Power 15W DIN Rail Mount DC/DC Converter 24V 630mA

The XP Power DDC15 Series is a highly reliable DIN rail mount DC/DC converter module, engineered to provide additional voltages in AC input DIN rail power systems. It is ideally suited to deliver isolated outputs and noise immunity, as well as supporting battery-powered or battery-backed applications.

Featuring a versatile 4:1 wide input range (9V to 36V DC), this converter can be supplied by both 12V and 24V nominal inputs, delivering a stable 24V fixed output at 630mA. With a maximum output power of 15W, it offers high efficiency of up to 85%, ensuring optimal performance while minimising energy loss. The module is designed with a low profile, making it easy to integrate into space-constrained setups.

Built for demanding environments, the DDC15 operates within an ambient temperature range of -40°C to 70°C. It provides 1500VDC isolation and complies with Class B conducted radiated emissions standards. The converter weighs just 65 grams and has compact dimensions of 40 mm in height, 30 mm in width, and 25 mm in depth, ensuring a lightweight and space-saving installation on any standard DIN rail.

Key Specifications

• Output Voltage: 24V DC
• Output Current: 630mA
• Output Power: 15W
• Input Voltage Range: 9V to 36V DC (Nominal 24V)
• Input Ratio: 4:1
• Isolation Voltage: 1500VDC
• Mounting Type: DIN Rail
• Operating Temperature: -40°C to 70°C
• Efficiency: Up to 85%
