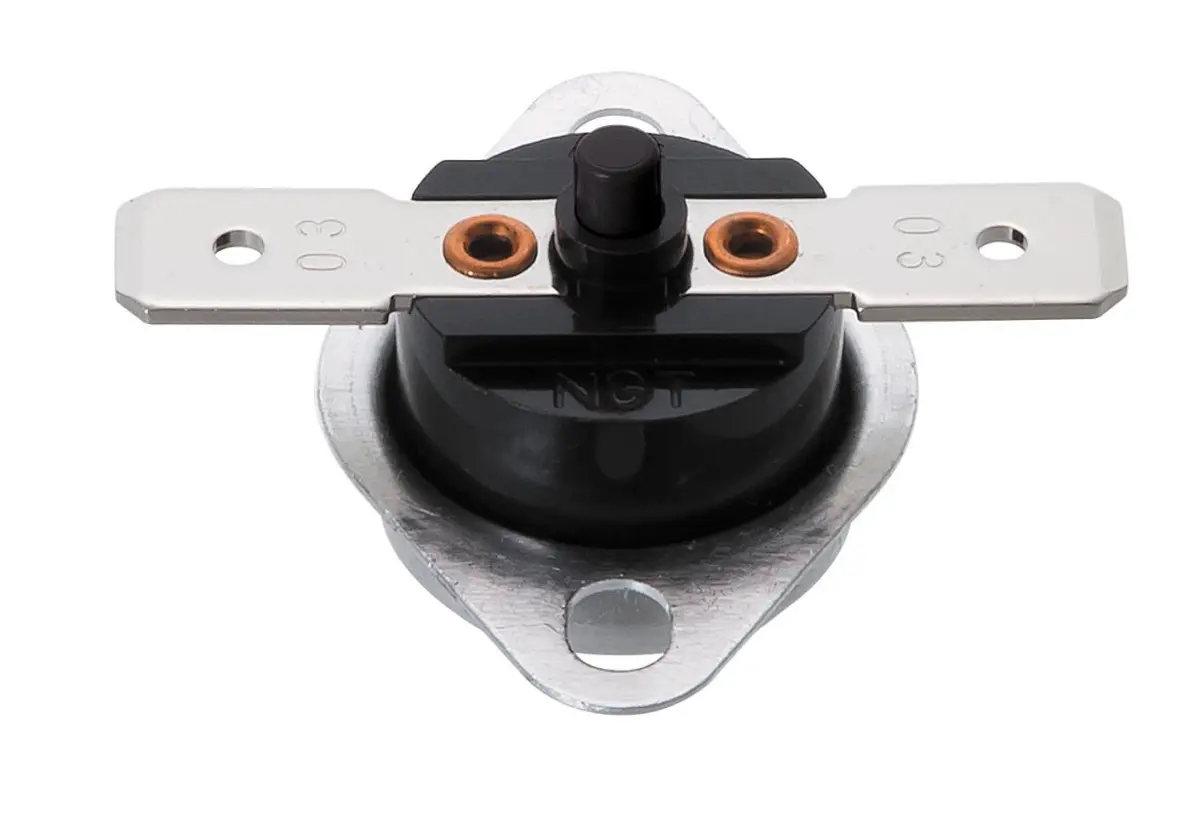

1/2 Inch Disc Type Thermostat Switch NC 65°C

The 1/2 Inch Disc Type Thermostat Switch is a normally closed (NC), flange mount device designed with a precise 65°C switching temperature. It features a quick connect sensor terminal and operates as an SPST manual reset type thermostat equipped with a highly responsive bimetallic disc.

This thermostat switch is meticulously engineered to satisfy UL, CSA, and DIN EN standard insulation distances, ensuring compliance with rigorous international safety requirements. It offers a protection rating equivalent to IP50, making it suitable for deployment in various demanding environments. The switch incorporates a high-quality silver nickel alloy contact alongside a durable aluminium metal cap, providing consistent electrical performance and long-term reliability.

Key Specifications

• Switching Temperature: 65°C
• Contact Operation: Normally Closed
• Sensor Terminals: Quick Connect
• Sensor Housing: Flange Mount
• Contact Rating: 10A at 240V AC, 15A at 120V AC
• Dimensions: 33 mm (H) x 22 mm (W) x 2 mm (D)
• Weight: 6 grams

With its robust construction and precise switching capabilities, this thermostat is an excellent choice for thermal management and over-temperature protection in a wide range of electrical and electronic applications.
