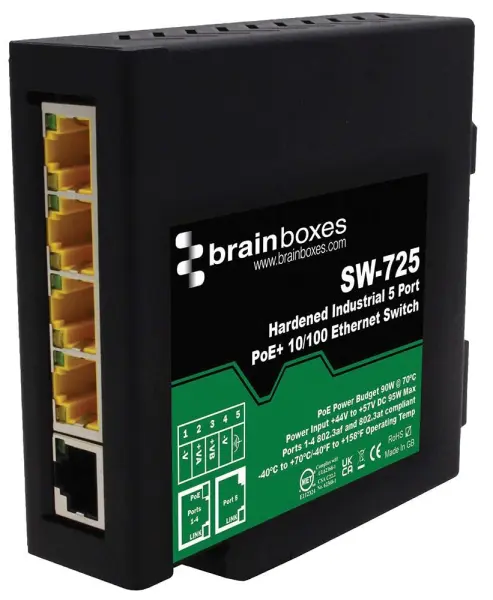

5 Port Industrial Unmanaged PoE+ Fast Ethernet Switch, DIN Rail, Hardened

The 5 Port Industrial Unmanaged PoE+ Fast Ethernet Switch from Brainboxes Ltd is a high-speed network switch engineered for reliable operation in demanding industrial environments. Its hardened metal case provides robust protection, while the slim profile ensures easy integration into space-constrained setups.

Power and Connectivity

With PoE+ capability on ports 1-4, this switch supplies both power and data to remote devices such as CCTV cameras, wireless access points, and other PoE-enabled equipment. The 90W PoE power budget (up to 30W per port) supports high-power devices, ensuring flexible deployment. Ethernet ports are magnetically isolated to reduce interference and enhance signal integrity.

Industrial Durability

This switch is designed for harsh conditions, featuring an IP20-rated metal housing and a wide operating temperature range from -40°C to +70°C. Dual redundant power inputs (available for +44V to +57V DC) ensure uninterrupted operation, while optimised power consumption based on link status enhances energy efficiency.

Installation and Ease of Use

The integrated DIN rail mounting with ground simplifies installation in industrial cabinets. A removable screw terminal block allows for easy wiring, while Auto MDI/MDI-X crossover support on all ports eliminates the need for crossover cables. The switch operates at speeds of 10Mbps and 100Mbps, making it ideal for Fast Ethernet networks.

Dimensions

Measuring just 99 x 29 x 108 mm (HxWxD), this compact switch fits into tight spaces without compromising performance. The package includes the switch and a user guide for quick setup.
