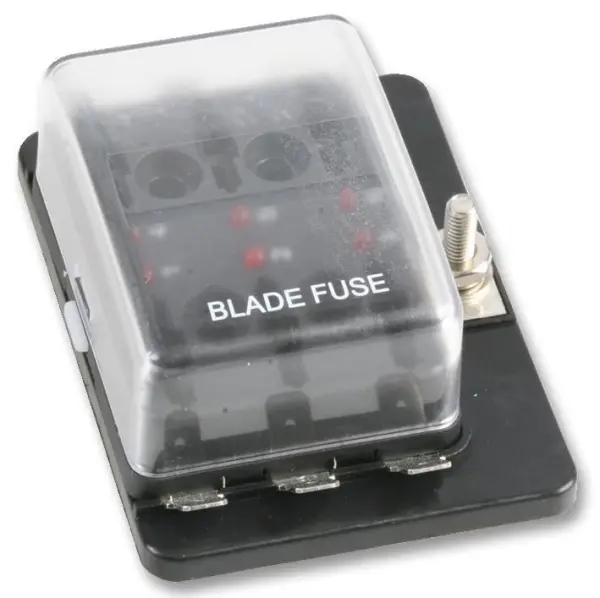

6 Way ATO Blade Fuse Box, LED, Chassis Mount, 30A

The 6 Way ATO Blade Fuse Box with LED Indication is a robust chassis-mounting solution for protecting multiple circuits in 12V or 24V DC automotive, marine, and industrial applications. This fuse holder from the Multicomp Pro PPFH Series allows you to manage up to six standard blade fuses (ATC/ATO) in a single, compact unit.

Each of the six fuse circuits is rated at 30A @ 32V DC, while the maximum input rating for the entire unit is 100A @ 32V DC, making it suitable for power distribution in a wide range of vehicles and equipment. A key safety feature is the LED indication on every circuit, which lights up immediately when a fuse blows, allowing for rapid fault diagnosis without the need for a multimeter or time-consuming manual checks.

All fuse circuits are connected via 6.35mm Faston quick-connect terminals, which allow for fast and secure wiring. The main power input is made through a robust UNF 10-32 threaded stud, ensuring a solid, high-current connection. The unit is designed for chassis mounting and is supplied with pre-drilled mounting holes for straightforward installation on a flat surface within an engine bay, fuse box enclosure, or control panel.

With its high build quality, clear LED diagnostics, and space-saving footprint, this fuse block is an essential component for building a tidy and reliable electrical system.

Key Features

• Six independent ATO/ATC blade fuse circuits
• Per-circuit LED indicator for blown fuse detection
• High current capability (100A input)
• Compact chassis-mount design with mounting holes

Specifications

• Fuse Type: Standard Blade (ATC / ATO)
• Number of Fuses: 6
• Fuse Current Rating: 30A per circuit
• Input Rating: 100A @ 32V DC
• Voltage Rating: 32V DC
• Terminals: Quick Connect (6.35mm Faston)
• Input Connection: UNF 10-32 Stud
