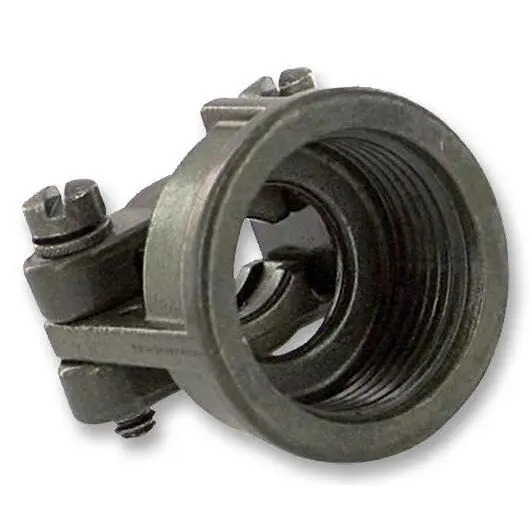

AMPHENOL Cable Clamp & Bush, Size 14, Zinc Alloy

The AMPHENOL Cable Clamp & Bush, Size 14 is expertly designed for use with standard cylindrical connectors, specifically the MS3057A type. Constructed from robust die-cast zinc alloy, this cable clamp ensures long-lasting durability and reliable performance in demanding environments.

A standout feature of this clamp is its floating clamping halves, which provide maximum strain relief. This design effectively protects cables from damage caused by excessive pulling, twisting, or general wear and tear. The clamp is highly versatile and suitable for use with jacketed cables or wires that are protected by tubing. When working with unjacketed cables or bare wires, it is recommended to use the corresponding MS3420 bushing to ensure a secure and safe fit.

Key Specifications

• Material: Die-cast zinc alloy
• Threads: 3/4-20
• Connector Shell Size: 12SL / 14 / 14S
• Product Range: 97
• Height: 33 mm
• Width: 22 mm
• Depth: 2 mm
• Weight: 34 grams

Ideal for industrial applications, this clamp and bush combination delivers a highly effective strain relief solution for standard cylindrical connectors, maintaining cable integrity and connection stability.
