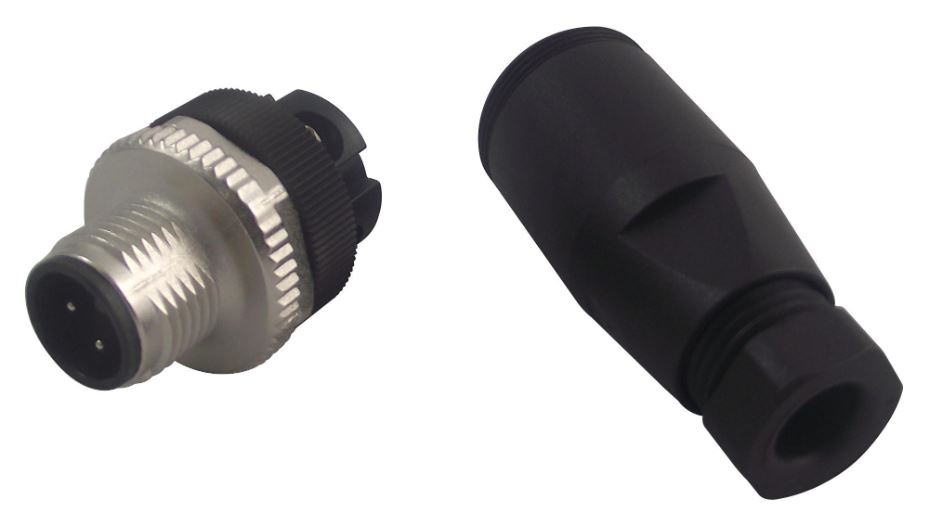

BINDER 713 Series 4-Way M12 Locking Plug Connector
BINDER M12 4-pin screw-lock plug connector for industrial automation, IP67-rated, -40°C to 85°C.
The BINDER 713 Series 4-Way M12 Locking Plug Connector (Model: 99-0429-14-04) is a high-quality circular cable plug sensor connector designed for automation and industrial applications. Featuring 4 pin contacts with screw termination, this connector ensures reliable and secure electrical connections in demanding environments. Its M12 x 1 screw interlock provides a robust and vibration-resistant coupling, ideal for industrial automation systems.
Constructed with a polyamide (PA) housing and brass (CuZn) contacts with CuSnZn (optaloy) plating, this connector offers excellent durability and corrosion resistance. The compact design promotes efficient and economical system wiring, making it suitable for a wide range of automation and control applications. The IP67-rated housing ensures protection against dust and water ingress, guaranteeing performance in harsh conditions.
Key Features
- 4-way screw-terminated pin contacts
- M12 threaded coupling for secure connections
- Robust nylon (PA) housing and brass contacts
- Gold-plated contacts for reduced resistance and corrosion resistance
- Wide operating temperature range (-40°C to 85°C)
- IP67 protection for dust and water resistance
- Compact and space-saving design for efficient wiring
Applications
- Industrial automation
- Sensing and instrumentation
- Process control systems
- Robotic and machinery wiring
BINDER’s 713 Series connector is a reliable choice for professionals seeking a high-performance solution for industrial connectivity.
- Industrial automation
- Sensing & instrumentation
- Process control systems
- Robotics wiring
- Model: 99-0429-14-04
- Connector Type: Cable Mount Plug
- No. of Contacts: 4
- Contact Type: Screw Pin
- Coupling Style: Threaded (M12 x 1)
- Wire Gauge: 0.75mm² (18AWG)
- Cable Outlet Diameter: 4mm to 6mm
- IP Rating: IP67
- Operating Temperature: -40°C to 85°C
- Rated Voltage: 250V
- Rated Current: 4A (at 40°C)
- Contact Material: Brass (CuZn) with CuSnZn (optaloy) plating
- Housing Material: Polyamide (PA) nylon
- Rated Impulse Voltage: 2500V
Always follow local regulations and product guidance.
