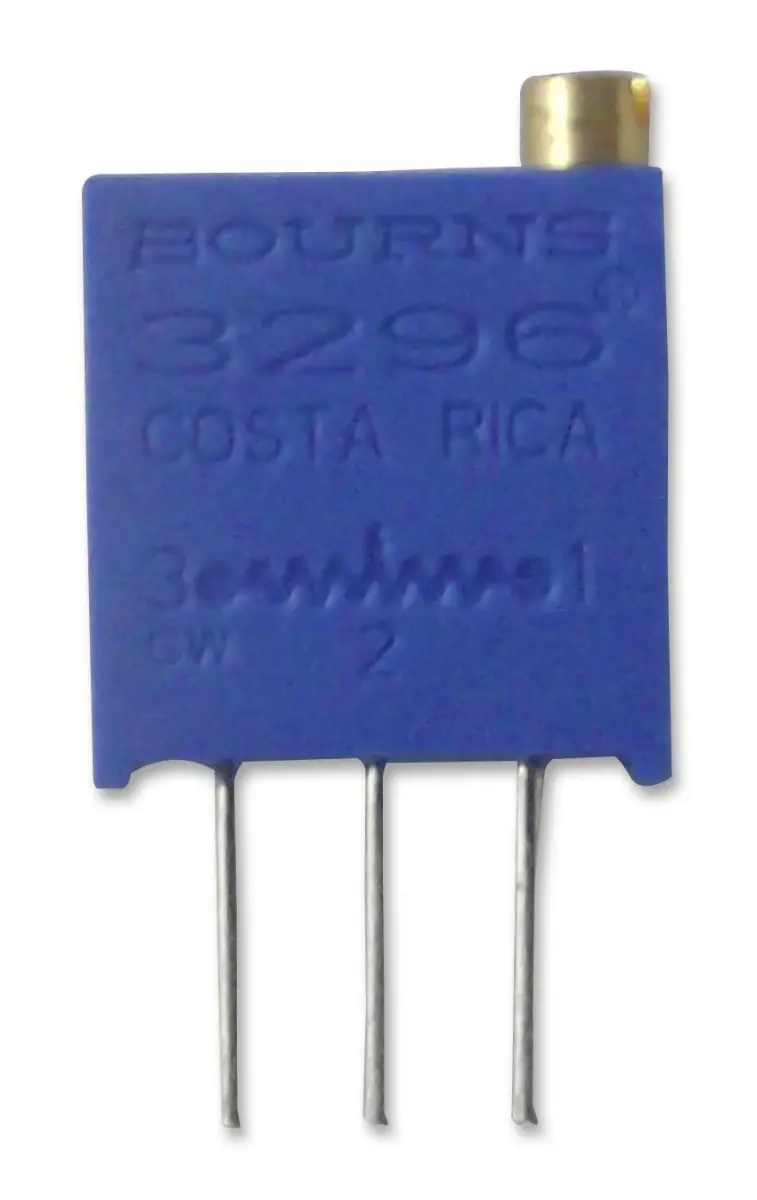

BOURNS 3296 200R Cermet Trimmer Potentiometer 25 Turn
Precision 25-turn cermet trimmer, 200ohm, IP65 rated, through hole. Top adjust, ±10% tolerance.
The BOURNS Trimpot 3296 series is a range of cermet, through hole trimming potentiometers designed for precise and reliable circuit adjustments in a wide array of electronic equipment. These multi-turn trimmers are ideal for applications requiring fine-tuning of resistance, such as measuring linear distance, angle, or rotation in production equipment.
This particular model has a track resistance of 200 ohms and features 25 turns for exceptional adjustment accuracy. The component boasts a IP65 rating, ensuring robust protection against dust and water ingress, making it suitable for demanding environments. Its compact 3/8-inch square design is available with either side or top adjustment options, providing flexibility for various PCB layouts.
With a power rating of 0.5W, a ±10% tolerance, and a temperature coefficient of ±100ppm/°C, this trimmer delivers stable performance across a wide operating temperature range from -55°C to +125°C. The chevron seal design and five terminal styles enhance its durability and integration versatility, making it a trusted choice for engineers and technicians.
Specifications
- Type: Multi Turn Trimmer Potentiometer
- Element Material: Cermet
- Adjustment Type: Top Adjust
- Track Resistance: 200 ohms
- Mounting Type: Through Hole
- Number of Turns: 25
- Product Range: 3296 Series
- Power Rating: 500mW
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Trimmer Shape/Size: 3/8 Inch Square
- Resistor Case/Package: SIP
- Sealing: IP65 Rated
- Rotational Life: 200 Cycles
- Operating Temperature: -55°C to +125°C
- Terminal Styles: 5
This component is a reliable choice for precision trimming in electronic circuits, ensuring long-term stability and performance.
