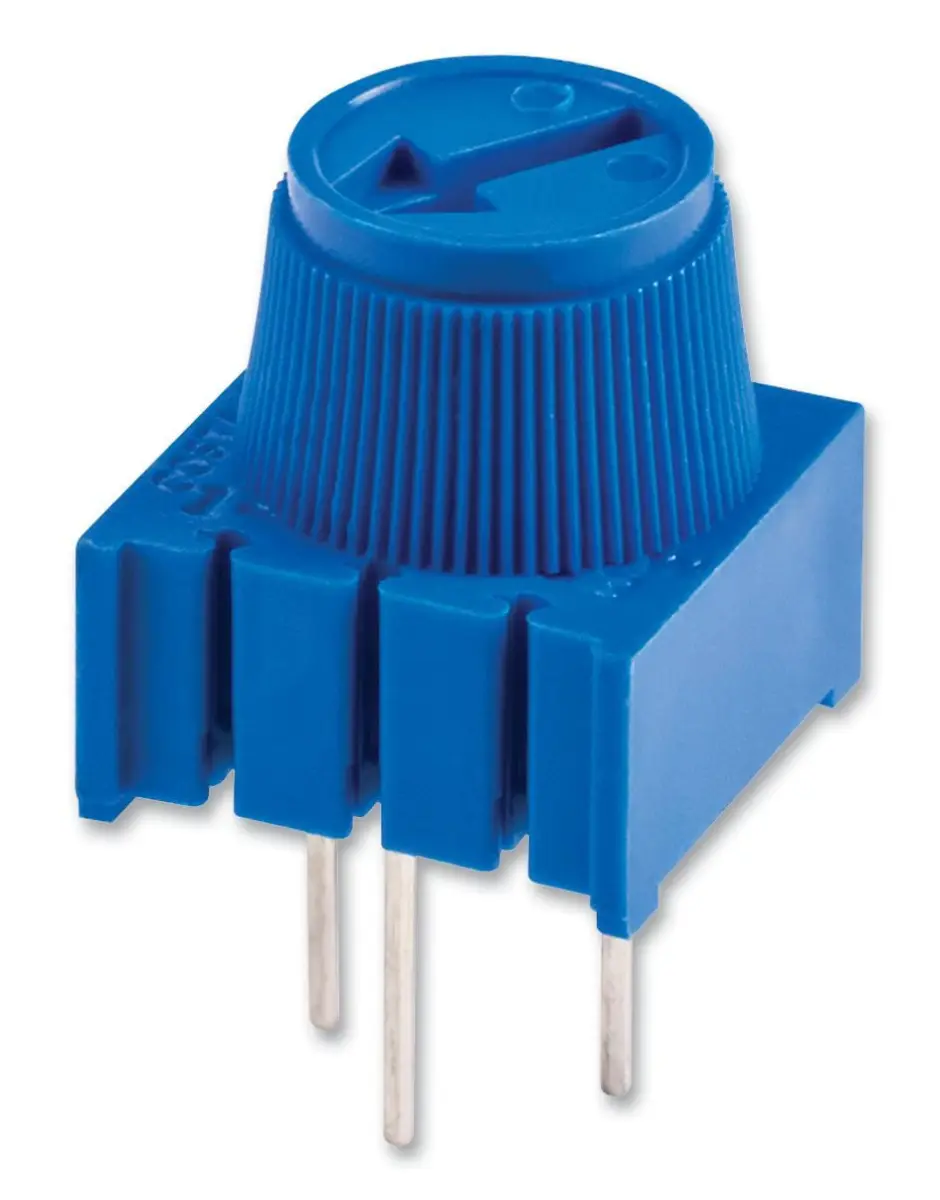

Bourns 3386 Series Cermet Trimmer, Top Finger Adjust, 5KΩ, Through Hole
Bourns 3386 series 5kΩ cermet trimmer. Single turn, top finger adjust, through-hole mount for precise circuit calibration. ±10% tolerance.
The Bourns 3386 Series is a reliable range of cermet, through-hole trimming potentiometers designed for precise circuit adjustments in a wide variety of electronic equipment. As a single-turn component, it provides straightforward and accurate calibration for voltage division and signal level setting.
Constructed with a durable cermet element, this trimmer offers excellent stability and a long operational life, with a rotational life of 200 cycles. The top finger adjust type (designated by codes F, G, K, P, R, U, V, or Y) is supplied with a convenient knob, allowing for easy manual adjustment without the need for tools. It features a standard 3/8-inch square profile for consistent PCB mounting.
Key Technical Specifications
- Track Resistance: A precise 5 kΩ (kiloohm) resistance value.
- Resistance Tolerance: ±10%, ensuring consistent performance across components.
- Power Rating: A robust 0.5W (500mW) rating for reliable operation under load.
- Temperature Performance: Features a low temperature coefficient (TCR) of ±100ppm/°C and operates reliably across a broad temperature range from -55°C to +125°C.
- Mounting: Through-hole design for secure and permanent PCB (printed circuit board) installation.
This trimmer is an essential component for prototyping, calibration, and final adjustment stages in electronic design, offering a dependable solution for fine-tuning circuit parameters.
