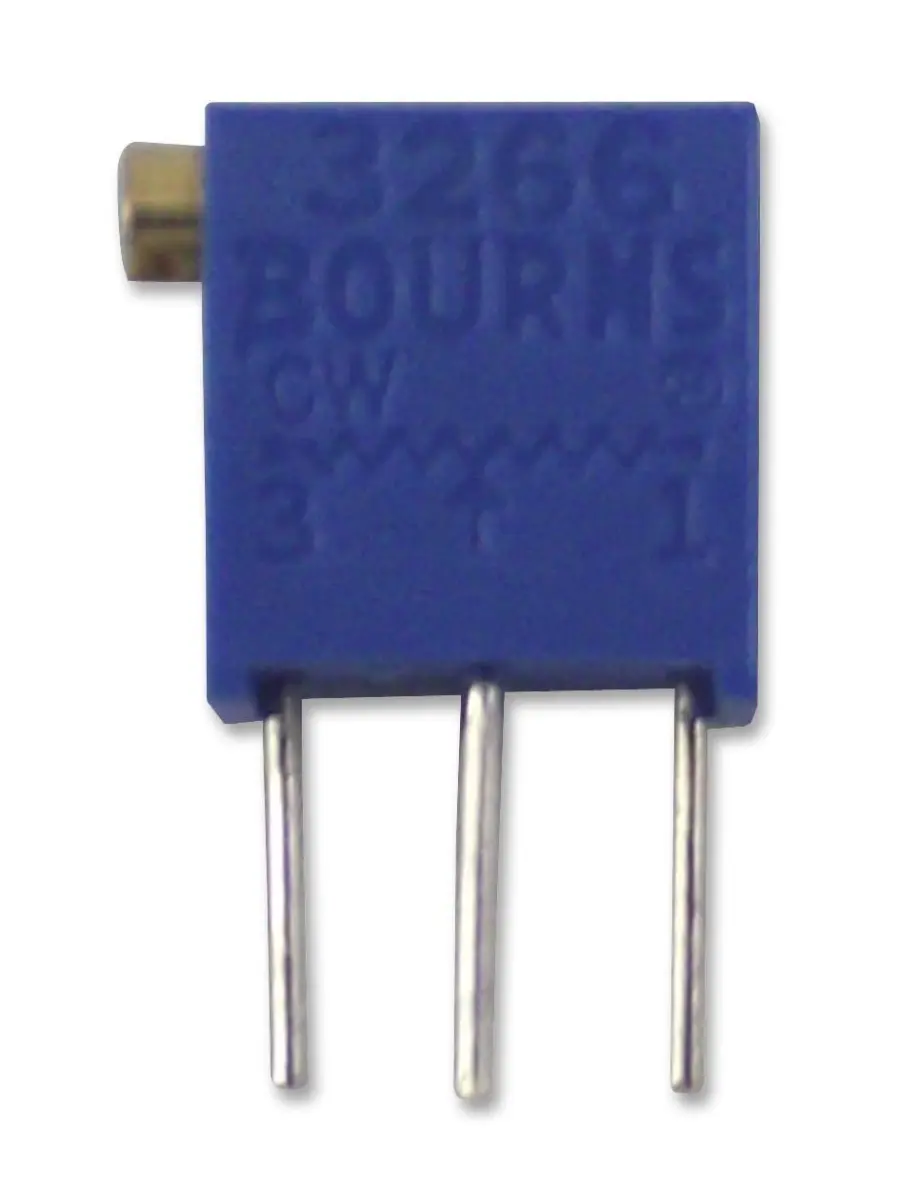

Bourns Trimmer Potentiometer 3266 Series 20kΩ 12-Turn Cermet
Bourns 3266 trimmer potentiometer, 20kΩ, 12-turn cermet, IP65 sealed. Through-hole, side adjust. Ideal for precision circuit adjustments.
The Bourns Trimpot 3266 series is a cermet, through-hole trimming potentiometer designed for precise multi-turn circuit adjustments in a wide range of electronic equipment. With 12 turns and a rotational life of 200 cycles, it delivers accurate and reliable tuning for applications such as measuring linear distance, angle, or rotation in production equipment.
This square 1/4-inch potentiometer offers both side and top adjustment via a lead screw, providing flexibility in various board layouts. The IP65-rated sealing protects against dust and moisture, ensuring dependable performance in demanding environments. The standoffs facilitate thorough cleaning of the PC board after soldering.
The trimmer features a resistance value of 20kΩ with a ±10% tolerance, a temperature coefficient of ±100ppm/°C, and an operating temperature range from -55°C to +125°C. It has a power rating of 0.25W and is available in a through-hole mounting style. The cermet element ensures long-term stability and durability.
Specifications
- Trimmer Type: Multi-turn
- Element Material: Cermet
- Adjustment Type: Side adjust
- Track Resistance: 20kΩ
- Mounting: Through-hole
- Number of Turns: 12
- Product Range: 3266 series
- Power Rating: 250mW
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Trimmer Shape/Size: 1/4-inch square
- Operating Temperature: -55°C to +125°C
- Sealing: IP65 rated
- Rotational Life: 200 cycles
This trimmer potentiometer is ideal for fine-tuning circuits in industrial, automotive, and test equipment where precision and reliability are essential.
