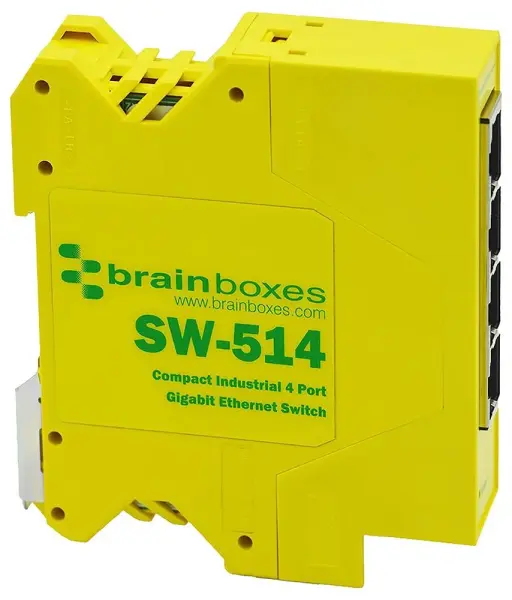

4 Port Industrial Gigabit Ethernet Switch, DIN Rail Mount
Robust 4-port Gigabit Ethernet switch for harsh industrial use. DIN rail mount, wide temperature range (-40°C to +80°C), and dual power input.
Designed for demanding industrial and mobile applications, the Brainboxes Industrial 4-Port Gigabit Ethernet Switch delivers robust and reliable network connectivity in a compact, DIN rail-mountable package. This high-speed unmanaged switch is engineered to withstand harsh environmental conditions, operating seamlessly across an extended temperature range from -40°C to +80°C.
The switch features a slim profile that takes up minimal cabinet or enclosure space, making it ideal for space-constrained installations. Each of the four Gigabit Ethernet ports offers magnetic isolation for enhanced protection against electrical noise and surges, which is critical in industrial settings. Auto MDI/MDI-X support on all ports simplifies installation by automatically detecting and correcting cable types, eliminating the need for crossover cables.
Power efficiency is built-in, with power consumption optimised based on the link status of connected devices. The switch supports a wide dual redundant power input range from +5V DC to +30V DC, ensuring compatibility with various industrial power supplies and providing fault tolerance. Connectivity is via an easily wireable and removable screw terminal block for secure power connections.
Housed in a robust, IP20-rated, non-conducting polyamide case, the switch is protected against casual contact with live parts. The integrated DIN rail mounting includes a grounding connection for safe and secure installation. True plug-and-play functionality means no software configuration is required, allowing for immediate deployment.
This switch is perfectly suited for a range of factory automation, process control, and vehicle networking applications where reliability, wide temperature tolerance, and compact form factor are essential.
