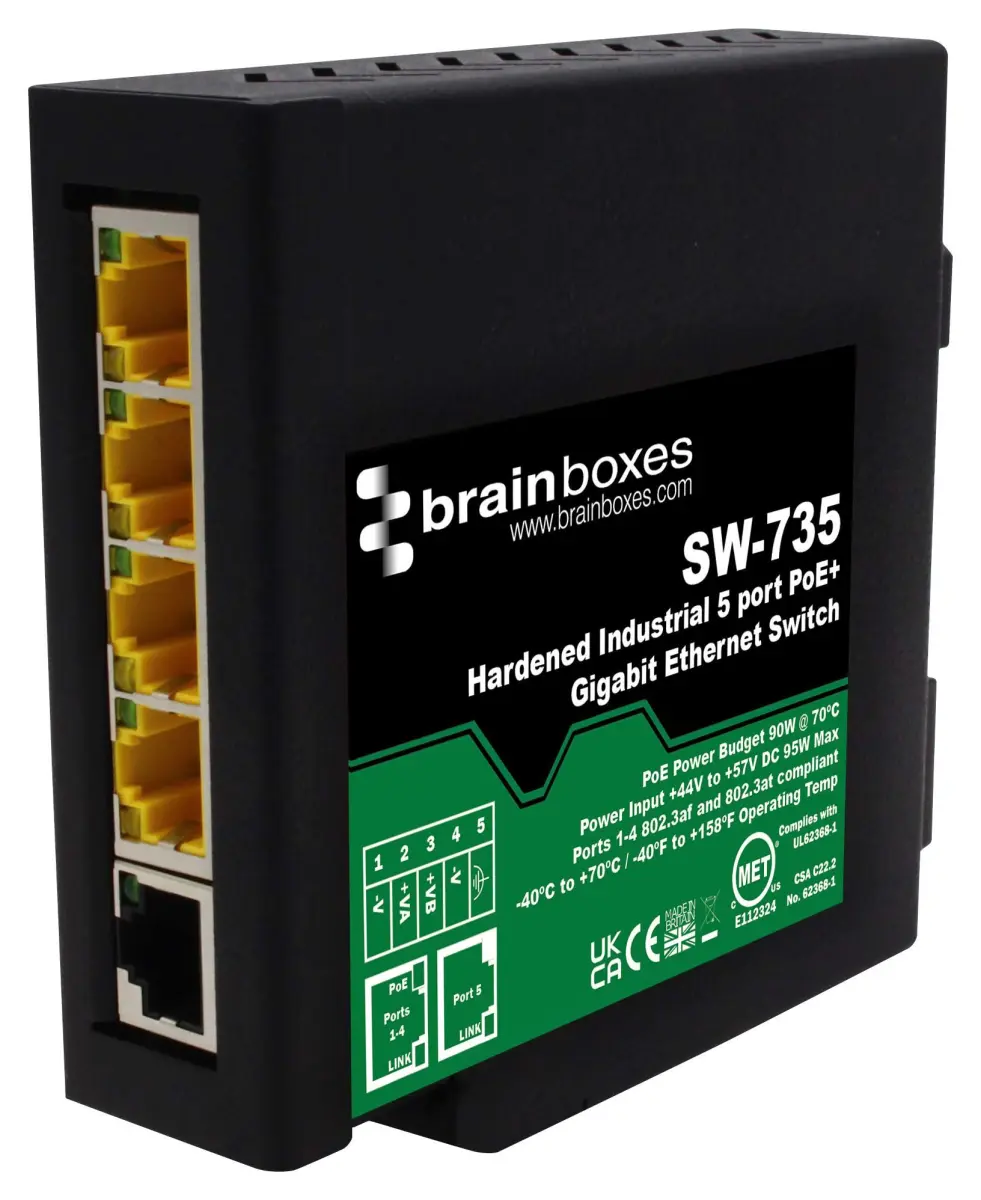

Brainboxes 5 Port Industrial Unmanaged PoE+ Gigabit Ethernet Switch

The Brainboxes SW-735 is a hardened, industrial-grade 5-port Gigabit Ethernet switch designed for robust operation in demanding environments. By integrating Power over Ethernet Plus (PoE+) technology, this switch simplifies installation and reduces costs by transmitting both data and electrical power over a single Ethernet cable, eliminating the need for separate, costly electrical wiring at remote device locations.

Engineered for reliability, the switch fully conforms to IEEE 802.3af/at standards, ensuring compatibility with a wide range of powered devices such as IP cameras, wireless access points, and VoIP phones. Its compact and rugged design is built to withstand extreme conditions, operating flawlessly within an industrial temperature range of -40°C to +70°C. This makes it an ideal solution for factory automation, transportation networks, outdoor installations, and other challenging applications.

Key features include four PoE+ capable ports that can deliver power to connected devices, alongside five Gigabit 10/100/1000 Base-T RJ45 Ethernet ports for high-speed data transfer. For enhanced system reliability, it incorporates redundant dual power inputs (44-57V DC), ensuring continuous operation even if one power source fails. Smart LED indicators provide real-time status information for quick visual monitoring and simplified troubleshooting.

With a streamlined DIN rail mounting design, the SW-735 offers a space-saving and secure installation. Its low power consumption (maximum 5.5W, excluding PoE output) contributes to energy efficiency in industrial setups. This unmanaged switch delivers plug-and-play functionality, requiring no configuration, which allows for rapid deployment and reliable network expansion in virtually any location.
