BRAINBOXES 8-Port Hardened Industrial Ethernet Switch, DIN Rail
Rugged 8-port DIN-mount Ethernet switch for harsh environments (-40°C to +80°C). Auto-crossover & redundant power.
The BRAINBOXES 8-Port Hardened Industrial Ethernet Switch is a rugged and reliable networking solution designed for demanding environments. Its compact design and robust construction ensure seamless connectivity in factories, vehicles, and marine settings where durability is essential. With an extended operating temperature range (-40°C to +80°C), this switch performs optimally in harsh conditions.
Key Features
- Plug-and-play setup with auto MDI/MDI-X crossover support for effortless installation.
- Industrial-grade protection with 1500VRMS magnetic isolation and IP-20-rated non-conducting polyamide casing.

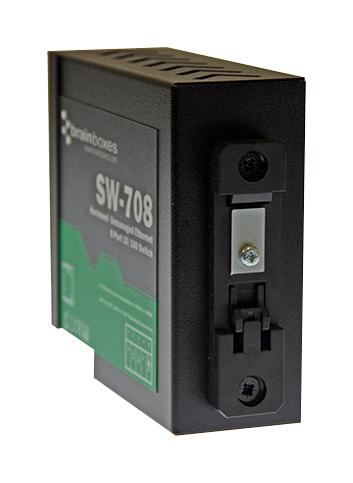

- DIN rail mountable for easy integration in control cabinets and industrial setups.
- Wide voltage input range (+5VDC to +30VDC) with redundant power input for backup.
- Tough metal housing with a removable, numbered power terminal for simplified wiring.
Applications
- Factory automation and industrial machinery.
- Vehicle networking (e.g., fleet management systems).
- Marine and outdoor installations requiring rugged Ethernet connectivity.
- Harsh environments where standard switches fail.
Specifications
- Ports: 8 × RJ45 (10/100Mbps).
- Dimensions (H×W×D): 99 × 115 × 41 mm.
- Mounting: DIN rail.
- Included: Switch and user guide.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Industrial automation
- Factory floor networking
- Vehicular Ethernet connectivity
- Marine applications
- Operating Temperature: -40°C to +80°C
- 1500VRMS Magnetic Isolation
- Auto MDI/MDI-X Crossover Support
- IP-20 Rated Non-Conducting Polyamide Case
- Power Input: +5VDC to +30VDC
- Redundant Power Input
- Tough Metal Casing
- Removable Numbered Power Terminal
- Dimensions: 99 × 115 × 41 mm
- Ports: 8 × RJ45 (10/100Mbps)
- Weight: 450g
