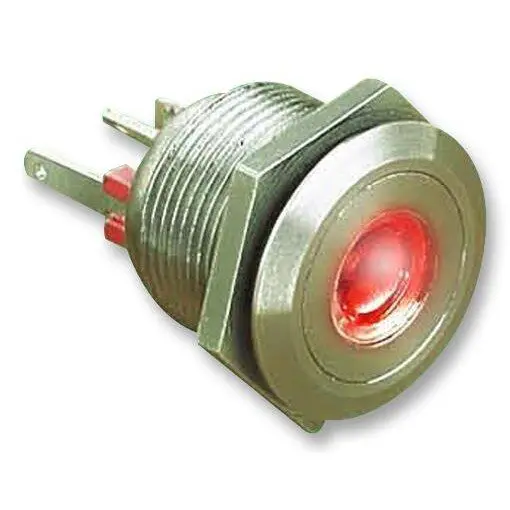

Bulgin Flush Vandal Resistant Switch SPST-NO 24V DC Red/Green LED

The Bulgin MPI001 series illuminated security switch combines robust stainless steel construction with vandal-resistant design, specifically engineered for reliability in demanding environments. Its marine-grade stainless steel body offers exceptional resistance to wear, corrosion, and harsh use, making it an ideal choice for access control and other high-traffic applications.

Key Features

• Front panel sealed to IP66 for superior protection against dust and water ingress
• Bright daylight LEDs with red or green illumination options
• Tactile feel for clear user feedback
• Screw terminals or 2.8mm tabs for secure connections
• Styled to match other Bulgin vandal-resistant security switches

The switch features a flush actuator with a natural colour cap, providing a sleek, low-profile surface that resists tampering and accidental activation. With a SPST-NO momentary operation, it is designed for momentary activation, reverting to its default state when released. The bright LED illumination ensures clear visibility even in bright daylight conditions, enhancing usability in various settings.

Specifications

• Contact Configuration: SPST-NO
• Switch Operation: Off-(On) Momentary
• Actuator Style: Flush
• Actuator Cap Colour: Natural
• Max Contact Current (DC): 50mA
• Max Contact Voltage (DC): 24V
• IP Rating: IP66
• Mounting: Panel Mount
• Terminals: Quick Connect (Screw or 2.8mm tabs)
• Illumination: Red/Green LED
• Diameter: 22mm

This switch is designed for reliable performance in hostile environments, ensuring long-lasting operation and minimal maintenance.
