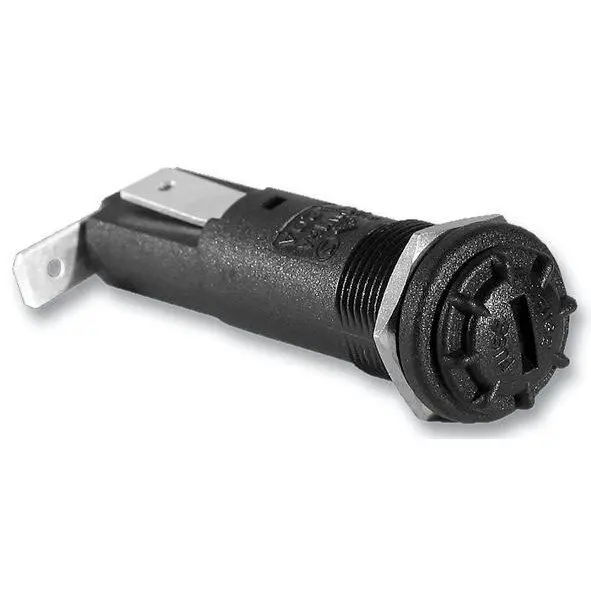

Fuse Holder, IP68 - 6.3mm x 32mm

This IP68-rated fuse holder delivers reliable circuit protection in demanding environments, making it a robust choice for professional and industrial applications. Meticulously engineered by Bulgin Limited, the panel-mount design accepts standard 1/4 inch x 1-1/4 inch (6.3mm x 32mm) cartridge fuses and provides a secure, touch-proof connection (category PC2) for enhanced safety during operation and maintenance.

The holder is constructed with a durable polyester body and a nylon cap, complemented by a glass-filled nylon nut for superior mechanical strength. Its brass and silver-plated contacts ensure excellent electrical conductivity, while the versatile fuse carrier can be released via the screw cap, a screwdriver, or by hand for quick and easy fuse replacement. Connection is simplified with quick-connect holder terminals, streamlining installation and reducing wiring time.

Designed for uncompromising performance, this holder offers a 16A current rating at 250VAC/VDC and a maximum power dissipation of 2.5W. It delivers dependable insulation with a resistance greater than 10⁶MΩ at 500VDC and can withstand a breakdown voltage of over 2kVAC. With a contact resistance of less than 10mΩ and a wide operating temperature range of -20°C to 85°C, it ensures stable and consistent performance. The IP68 ingress protection rating makes it completely sealed against dust and prolonged immersion in water, providing dependable operation in harsh conditions.

The compact design (43 x 33 x 15mm) fits neatly into control panels and equipment enclosures. Whether used in security systems, marine equipment, or industrial machinery, this fuse holder provides a secure, durable, and high-performance solution for safeguarding sensitive electronics.

Variant Details

• Size: 6.3mm x 32mm
