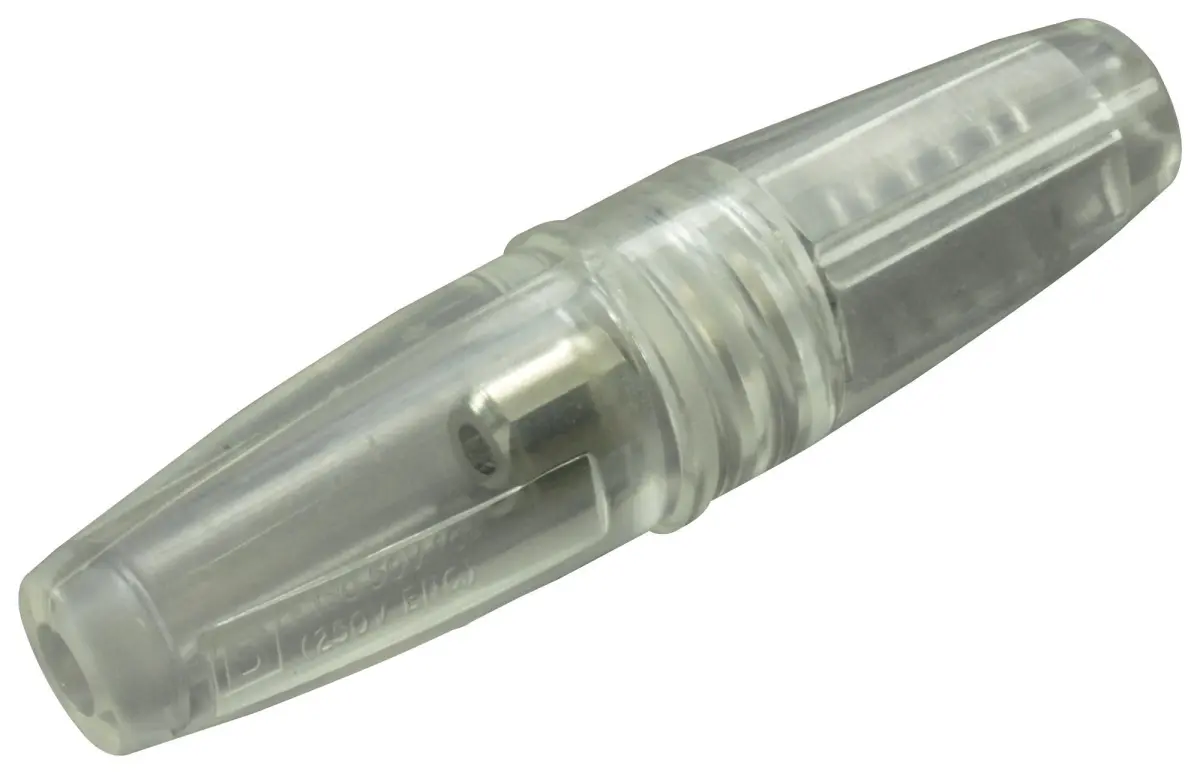

Bulgin 1-1/4 In-Line Cartridge Fuse Holder 10A 250V

The Bulgin 1-1/4 In-Line Cartridge Fuse Holder is a robust and reliable component designed for secure fuse housing in various electrical applications. Rated at 10A and 250V AC/DC, this in-line holder accommodates 1/4 x 1-1/4 inch (6.3mm x 32mm) cartridge fuses, including 3AB and 3AG types.

Constructed from a combination of polybutene and nylon, the holder features a clear body that allows for easy visual inspection of the fuse. The contacts are brass and nickel-plated for excellent conductivity and corrosion resistance, while the stainless steel grub screw ensures a secure and durable connection. The screw holder terminals provide a straightforward and reliable wiring solution.

Electrical and Thermal Performance

• Operating temperature range: -20°C to 90°C
• Maximum cable acceptance: 1mm² conductor
• Insulation resistance: >10⁵MΩ at 500VDC
• High voltage proof test: 2kV
• Contact resistance: <10mΩ

With a protection category of PC1, this single-fuse holder is both safe and practical for safety applications. Its compact design, measuring 43mm in height, 33mm in width, and 15mm in depth, makes it suitable for installations where space is limited. Weighing just 10 grams, it is a lightweight yet sturdy choice for your circuit protection needs.
