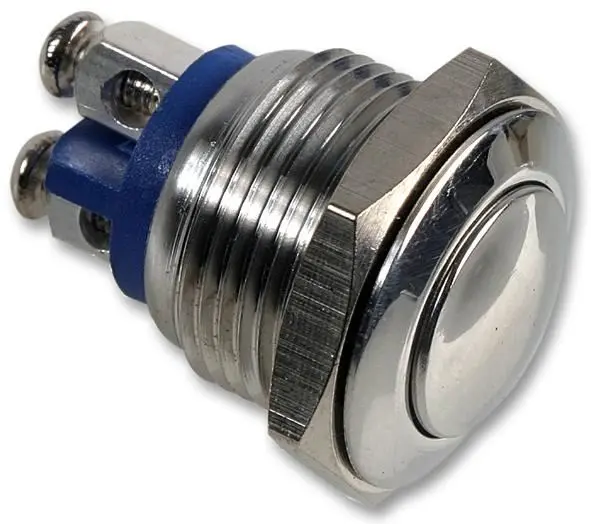

Bulgin Vandal Resistant Domed SPST Switch, Momentary, 48V DC, 2A

The Bulgin Vandal Resistant Domed SPST Switch is a robust and reliable momentary-action switch designed for demanding environments where durability and space efficiency are critical. This single-pole, single-throw (SPST) switch features an OFF-(ON) function, meaning it is normally open and makes contact only when the button is pressed.

Part of the Domed Profile series, this switch is built with a polished stainless steel body and a prominent round domed actuator, offering both a premium appearance and exceptional resistance to vandalism and heavy use. Its compact 16mm design makes it an ideal choice for applications where panel space is limited.

Internally, the switch uses high-quality silver contacts and silver-plated brass terminations to ensure excellent electrical conductivity and long-term reliability. Connection is secure and straightforward via screw terminations. It is engineered to operate reliably across a wide temperature range from -20°C to 70°C, making it suitable for various industrial and commercial settings.

With a maximum rating of 2A at 48V DC, this non-illuminated switch is a dependable component for control panels, security systems, public access equipment, and machinery interfaces. Its vandal-resistant construction ensures it can withstand intentional abuse and harsh operating conditions, providing consistent performance over its lifespan.

Key Specifications

• Contact Configuration: SPST-NO (Single-Pole, Single-Throw, Normally Open)
• Switch Operation: Momentary (push to make)
• Actuator Style: Round Domed
• Maximum Rating: 2A at 48V DC
• Body Material: Polished Stainless Steel
• Terminations: Screw
• Contacts: Silver
• Terminals: Silver-plated brass
• Mounting: Panel Mount
• Operating Temperature: -20°C to 70°C
• Illumination: Non-Illuminated

This switch is
