Camden Boss 16-Way Common Cathode Diode DIN Rail Module
Compact 16-way diode DIN rail module for reverse voltage & back EMF protection. Uses 1N4007 diodes, rated 1A/250V. For control panels.

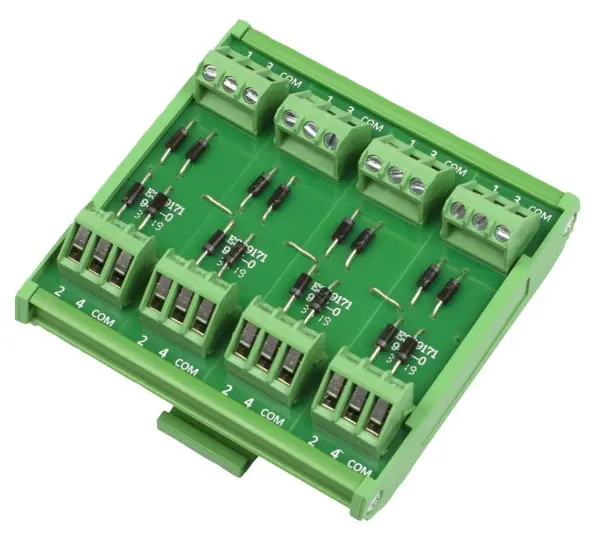

The Camden Boss CIM/16W-DIOCC is a 16-way common cathode diode module designed for DIN rail mounting, offering a compact and efficient solution for circuit protection and signal conditioning. It utilises sixteen individual 1N4007 diodes to provide robust reverse voltage and back EMF protection, safeguarding sensitive control circuits and inductive loads from potential damage.
Engineered for easy installation, the module features a low-profile design, clearly marked terminals, and a 45° cable entry that simplifies wiring. Its construction is built for reliability in industrial and commercial electrical environments, where consistent performance is essential.
Key Features & Benefits
- Comprehensive Protection: Provides effective reverse voltage and back EMF protection for circuits and inductive loads like relays and solenoids.
- High-Quality Diodes: Equipped with sixteen 1N4007 diodes, rated for 1A at 250V with a peak voltage of 1000V.
- Easy Installation: Features a DIN rail clip for secure mounting, marked terminals for clear identification, and angled cable entry for effortless wiring.
- Durable Construction: Designed for long-term reliability in control panels and enclosures.
- Compact Design: Its space-saving footprint allows for efficient use of panel space.
Technical Specifications
- Diode Type: 1N4007 (16 individual units)
- Configuration: Common Cathode
- Rated Current: 1A
- Rated Voltage: 250V
- Peak Voltage: 1000V
- Cable Entry: Accepts 0.6 - 2.5mm² conductors
- Terminal Screws: M2.5
- Recommended Strip Length: 6mm
- Maximum Terminal Torque: 0.5Nm
- Mounting: Standard 35mm DIN rail
- Dimensions (LxWxH): 82mm x 82mm x 38mm
Ideal for use in control panels, automation systems, and any application requiring reliable diode
