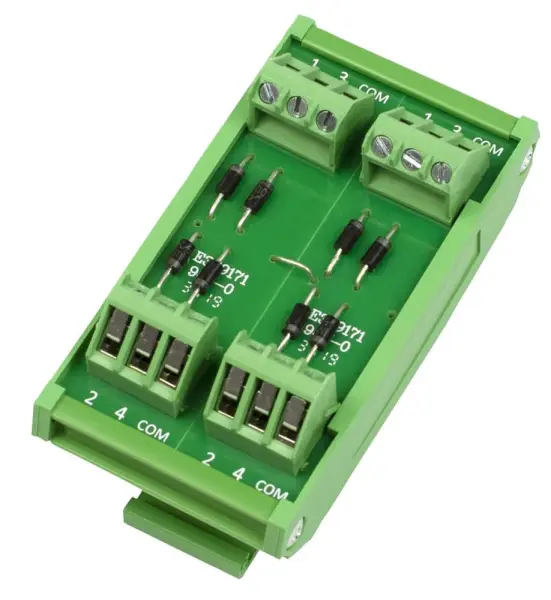

CamdenBoss CIM/8W-DIOCA 8 Way Common Anode Diode DIN Rail Module

The Camden Boss CIM/8W-DIOCA is an 8-way common anode diode module designed for secure and efficient DIN rail mounting. This compact unit provides a straightforward solution for protecting sensitive electronic circuits from reverse voltage and back EMF generated by inductive loads such as relays, solenoids, and motors. It also facilitates indicator lamp testing and various control functions, making it an indispensable component in control panels and electrical enclosures.

Featuring eight individual 1N4007 diodes, the module offers robust protection against return voltage, ensuring the integrity of connected circuits. The low-profile design maximises space efficiency within enclosures, while the clearly marked terminals and 45-degree cable entry angle allow for simplified, error-free wiring and maintenance access. This design significantly reduces installation time and improves overall system reliability.

Constructed for durability and safety, the module accepts cables from 0.6mm² to 2.5mm² and utilises M2.5 terminal screws with a recommended maximum torque of 0.5Nm and a strip length of 6mm. Its compact dimensions ensure it fits neatly on standard DIN rails, providing a professional and organised appearance for industrial and commercial electrical installations.

The CIM/8W-DIOCA is part of the reliable CIM product range from Camden Boss, a trusted name in electrical components. Its practical design and protective functionality make it suitable for a wide array of applications where circuit protection and signal conditioning are paramount, delivering both performance and peace of mind.
