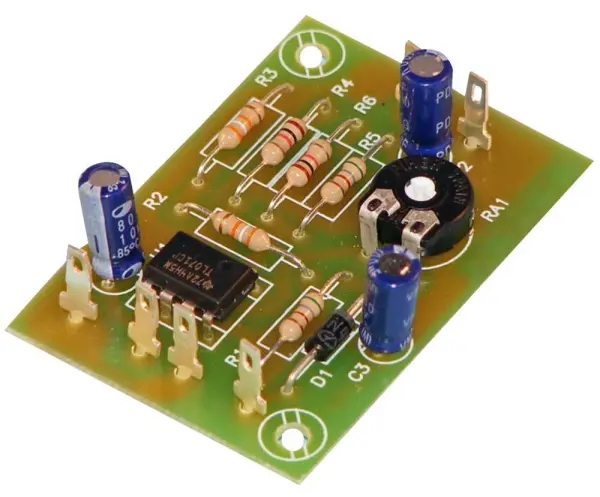

Cebek Mono Preamplifier Module 26k Ohm

The Cebek Mono Preamplifier Module is a compact and efficient audio solution designed specifically for low impedance microphones. Powered by a 12Vdc supply, this module delivers reliable and clear audio amplification, making it an essential component for custom audio projects and electronics installations.

This preamplifier offers an input impedance of 560Ω and an output impedance of 1kΩ, ensuring optimal signal transfer and compatibility with a wide range of audio equipment. With a current consumption of just 5mA, it operates efficiently without draining your power source. The module supports an input signal of 5mV and provides a maximum output level of 2V, giving you substantial gain for your audio signals.

The frequency range spans from 30Hz to 17kHz, capturing the essential audio spectrum with clarity and minimal distortion. Measuring 43mm in height, 33mm in width, and 15mm in depth, and weighing just 25 grams, its compact size ensures that it can be easily integrated into tight spaces or existing enclosures, providing flexibility for various DIY audio and electronic applications.

Key Features

• Power supply: 12Vdc
• Input impedance: 560Ω
• Output impedance: 1kΩ
• Frequency range: 30Hz-17kHz
• Maximum output level: 2V
